HTMLのPRE, CODEタグ内に記述したソースコードに行番号を追加するには

CSS、JavaScript/jQuery、C#などのコードをWebフォーム（Webページ）に表示するときは、 HTMLの<pre><code>==ここにコードを記述する==</code></pre>を使用します。しかし、JavaScriptやC#などのコードが長いときはコードの途中までしか表示されないといったことがあります。このような場合、CSSを使用してコードをスクロールできるようにします。ここでは、CSSを使用してコードをスクロールできるようにしたり、コードに行番号をつけるといった方法を解説します。なお、コードに行番号を追加するサンプルではJavaScript/jQueryを使用しています。図1をクリックすると拡大表示します。

作成手順

VS2019(Visual Studio 2019 or Visual Studio 2022)を起動したら新規のWebフォーム「Article007.aspx」を作成します。

Webフォームのヘッダータグ内「<head>...</head>」にSTYLEタグを追加してsample1からsample5のCSSを入力します。


Article007.aspx:

<style>
    /*Reset defult CSS*/
    pre {
        max-width: 65em;
        overflow: hidden;
        background-color: #F0F0E8;
        border: none;
        border-left: none;
        border-left-width: 0px;
        display: normal;
        padding: 0px;
    }
        pre code b {
            color: black;
            font-weight: 400;
        }
            pre code b.green {
                color: black;
                font-weight: 400;
            }
            pre code b.blue {
                color: black;
                font-weight: 400;
            }
        pre.article007-sample1 {
            max-width: 65em;
            overflow: auto;
            background-color: #F0F0E8;
        }
        pre.article007-sample2 {
            max-width: 65em;
            overflow: auto;
            background-color: #F0F0E8;
            border: 1px solid #999;
            padding: 5px;
        }
        pre.article007-sample3 {
            max-width: 65em;
            overflow: auto;
            background-color: #F0F0E8;
            border: 1px solid #999;
            border-left-width: 8px;
            padding: 5px;
        }
        pre.article007-sample4 {
            max-width: 65em;
            overflow: auto;
            color: white;
            background-color: black;
            border: 1px solid #999;
            border-left-width: 8px;
            border-left-color: darkcyan;
            padding: 5px;
        }
            pre.article007-sample4 code b {
                color: red;
                font-weight: 400;
            }
                pre.article007-sample4 code b.green {
                    color: darkseagreen;
                    font-weight: 400;
                }
                pre.article007-sample4 code b.blue {
                    color: blueviolet;
                    font-weight: 600;
                }
        pre.article007-sample5 {
            max-width: 65em;
            overflow: auto;
            color: white;
            background-color: black;
            border: 1px solid #999;
            border-left-width: 8px;
            border-left-color: darkcyan;
            margin: 0 0 1em;
            padding: .5em 1em;
        }

            pre.article007-sample5 code, pre.article007-sample5 .line-number {
                color: white; /* color of code */
                display: block;
            }
            pre.article007-sample5 .line-number {
                float: left;
                margin: 0 1em 0 -1em;
                border-right: 1px solid;
                border-right-color: white; /* Color of border | */
                text-align: right;
            }
                pre.article007-sample5 .line-number span {
                    display: block;
                    color: coral; /* Color of Line Number 1,2,3,... */
                    padding: 0 .5em 0 1em;
                }
            pre.article007-sample5 .cl {
                display: block;
                clear: both;
            }
            pre.article007-sample5 code b {
                color: red;
                font-weight: 400;
            }
                pre.article007-sample5 code b.green {
                    color: lightcoral;
                    font-weight: 600;
                }
                pre.article007-sample5 code b.blue {
                    color: aquamarine;
                    font-weight: 500;
                }
</style>

Webフォームのヘッダータグ内「<head>...</head>」にSCRIPTタグを追加してjQueryの最新ライブラリーを取り込みます。ここではjQuery 3.6.0のライブラリーを取り込んでいます。さらにSCRIPTタグを追加して、次のようなJavaScript/jQueryのコードを入力します。


Article007.arpx:

<script src="https://code.jquery.com/jquery-3.6.0.slim.min.js" integrity="sha256-u7e5khyithlIdTpu22PHhENmPcRdFiHRjhAuHcs05RI=" crossorigin="anonymous"></script>
<script type="text/javascript">
    // jQuery Document Ready Event...
    $(function () {

        $('input#btnApplyCss1').click(function () {
            $('pre#article007-sample1').toggleClass('article007-sample1');
        });

        $('input#btnApplyCss2').click(function () {
            $('pre#article007-sample2').toggleClass('article007-sample2');
        });

        $('input#btnApplyCss3').click(function () {
            $('pre#article007-sample3').toggleClass('article007-sample3');
        });

        $('input#btnApplyCss4').click(function () {
            $('pre#article007-sample4').toggleClass('article007-sample4');
        });

        $('input#btnApplyCss5').click(function () {
            $('pre.article007-sample5-addline').each(function (index, element) {
                var spanx = $(element).find('span.line-number');
                if (spanx.length == 0) {
                    element.innerHTML = '<span class="line-number"></span>' + element.innerHTML + '<span class="cl"></span>';
                    var num = element.innerHTML.split(/\n/).length;
                    for (var j = 0; j < num; j++) {
                        var span = $(element).find('span.line-number');
                        span[0].innerHTML += '<span>' + (j + 1) + '</span>';
                    }
                    $('pre.article007-sample5-addline').addClass('article007-sample5');
                }
                else {
                    $(spanx).remove();
                    $('pre.article007-sample5-addline').removeClass('article007-sample5');
                }
            });
        });

    });
</script>

Webフォームに「Sample #1」から「Sample #5」を入力します。


Article007.aspx:

<h3>Sample #1 (max-width: 65em; overflow: auto; background-color: #F0F0E8;)</h3>
<input id="btnApplyCss1" type="button" style="background-color:orange" value="Apply CSS1 ! (Toggle Button)" />
<pre id="article007-sample1">
<code>
protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  <b class="green">// Home, Liberal Arts,...</b>
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     <b class="green">// PROD(V1.0.0) or DEVL(V1.0.0)</b>
        appSub.InnerText = wc.strPoweredBy;                                                 <b class="green">// Powered by ASP.NET 4.x</b>

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}
</code>
</pre>

<h3>Sample #2 (border:1px solid #999; padding: 5px;)</h3>
<input id="btnApplyCss2" type="button" style="background-color:orange" value="Apply CSS2 ! (Toggle Button)" />
<pre id="article007-sample2">
<code>
protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  <b class="green">// Home, Liberal Arts,...</b>
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     <b class="green">// PROD(V1.0.0) or DEVL(V1.0.0)</b>
        appSub.InnerText = wc.strPoweredBy;                                                 <b class="green">// Powered by ASP.NET 4.x</b>

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}
</code>
</pre>

<h3>Sample #3 (border-left-width: 10px;)</h3>
<input id="btnApplyCss3" type="button" style="background-color:orange" value="Apply CSS3 ! (Toggle Button)" />
<pre id="article007-sample3">
<code>
protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  <b class="green">// Home, Liberal Arts,...</b>
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     <b class="green">// PROD(V1.0.0) or DEVL(V1.0.0)</b>
        appSub.InnerText = wc.strPoweredBy;                                                 <b class="green">// Powered by ASP.NET 4.x</b>

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}
</code>
</pre>

<h3>Sample #4 (color:white; background-color: black; border-left-color: darkcyan;)</h3>
<input id="btnApplyCss4" type="button" style="background-color:orange" value="Apply CSS4 ! (Toggle Button)" />
<pre id="article007-sample4">
<code>
protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  <b class="green">// Home, Liberal Arts,...</b>
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     <b class="green">// PROD(V1.0.0) or DEVL(V1.0.0)</b>
        appSub.InnerText = wc.strPoweredBy;                                                 <b class="green">// Powered by ASP.NET 4.x</b>

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}
</code>
</pre>

<h3>Sample #5 (add line number; CSS+jQuery)</h3>
<input id="btnApplyCss5" type="button" style="background-color:orange" value="Apply CSS5 ! (Toggle Button)" />
<br /><br />
<pre id="article007-sample5-1" class="article007-sample5-addline"><code>protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  <b class="green">// Home, Liberal Arts,...</b>
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     <b class="green">// PROD(V1.0.0) or DEVL(V1.0.0)</b>
        appSub.InnerText = wc.strPoweredBy;                                                 <b class="green">// Powered by ASP.NET 4.x</b>

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}</code></pre>

<pre id="article007-sample5-2" class="article007-sample5-addline"><code><b class="green">pre</b> {
    <b class="blue">max-width</b>: <b class="red">65em</b>;
    <b class="blue">overflow</b>: <b class="red">hidden</b>;
    <b class="blue">background-color</b>: <b class="red">#F0F0E8</b>;
    <b class="blue">border</b>: <b class="red">none</b>;
    <b class="blue">border-left</b>: <b class="red">none</b>;
    <b class="blue">border-left-width</b>: <b class="red">0px</b>;
    <b class="blue">display</b>: <b class="red">normal</b>;
    <b class="blue">padding</b>: <b class="red">0px</b>;
}</code></pre>

操作手順と解説

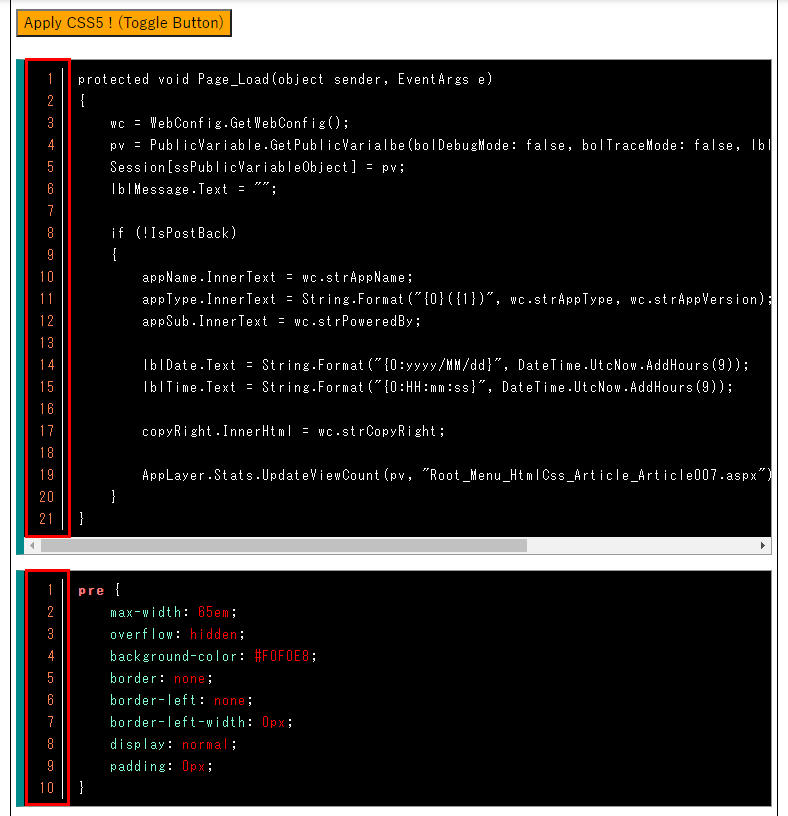

サンプルが表示されたらボタン[Apply CSS1 (Toggle Button)]をクリックします。サンプルのコードがCSSでフォーマットされて表示されます。再度ボタンをクリックするとフォーマットされない状態に戻ります。
同様の手順で[Apply CCS2]から[Apply CSS5]のボタンをクリックしてみてください。

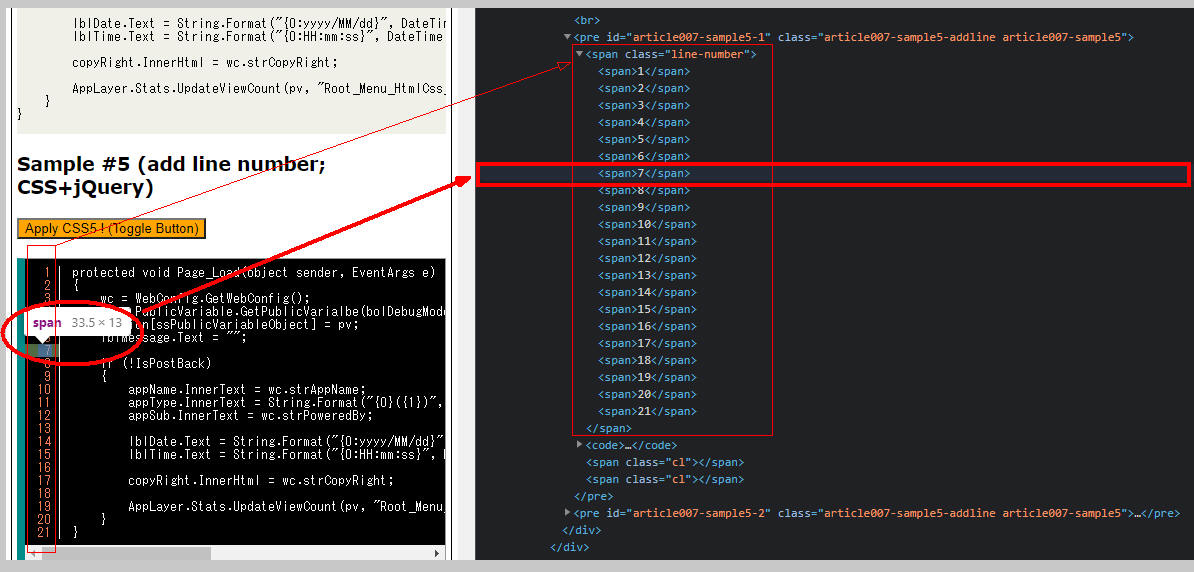

図2:

[Apply CSS5]ボタンをクリックしたときは、サンプルのコードに行番号が追加されて表示されます。コードの行番号はJavaScript/jQueryを使用して表示しています。 WindowsのGoogle Chromeを使用しているときは[F12]を押してデバッグツールを表示して[Elements]タブをクリックすると、 JavaScript/jQueryで追加した行番号が表示されます。JavaScript/jQueryでは親要素「」を追加して、この親要素に行番号を表示する子要素の「123...」を追加しています。図2の画像をクリックすると図が拡大表示されます。図2の下に表示されている図のキャプション【図2】上にマウスを移動すると図の説明が表示されます。

span要素内に配置した行番号をコードの左端に表示させるには６行目の「float: left」を追加します。サンプルコードの色（white）は２行目、行番号とコードの境界線の色(white)は９行目、行番号の色(coral)は１４行目で指定しています。

pre.article007-sample5 code, pre.article007-sample5 .line-number {
    color: white; /* Color of code */
}

pre.article007-sample5 .line-number {
    float: left;
    margin: 0 1em 0 -1em;
    border-right: 1px solid;
    border-right-color: white; /* Color of border | */
    text-align: right;
}

    pre.article007-sample5 .line-number span {
        color: coral; /* Color of Line Number 1,2,3,... */
        padding: 0 .5em 0 1em;
    }

pre.article007-sample5 .cl {
    clear: both;
}

Live DEMO

Sample #1 (max-width: 65em; overflow: auto; background-color: #F0F0E8;)


protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  // Home, Liberal Arts,...
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     // PROD(V1.0.0) or DEVL(V1.0.0)
        appSub.InnerText = wc.strPoweredBy;                                                 // Powered by ASP.NET 4.x

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}

Sample #2 (border:1px solid #999; padding: 5px;)


protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  // Home, Liberal Arts,...
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     // PROD(V1.0.0) or DEVL(V1.0.0)
        appSub.InnerText = wc.strPoweredBy;                                                 // Powered by ASP.NET 4.x

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}

Sample #3 (border-left-width: 10px;)


protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  // Home, Liberal Arts,...
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     // PROD(V1.0.0) or DEVL(V1.0.0)
        appSub.InnerText = wc.strPoweredBy;                                                 // Powered by ASP.NET 4.x

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}

Sample #4 (color:white; background-color: black; border-left-color: darkcyan;)


protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  // Home, Liberal Arts,...
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     // PROD(V1.0.0) or DEVL(V1.0.0)
        appSub.InnerText = wc.strPoweredBy;                                                 // Powered by ASP.NET 4.x

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}

Sample #5 (add line number; CSS+jQuery)

protected void Page_Load(object sender, EventArgs e)
{
    wc = WebConfig.GetWebConfig();
    pv = PublicVariable.GetPublicVarialbe(bolDebugMode: false, bolTraceMode: false, lblMessage: lblMessage, lblTrace: lblMessage);
    Session[ssPublicVariableObject] = pv;
    lblMessage.Text = "";

    if (!IsPostBack)
    {
        appName.InnerText = wc.strAppName;                                                  // Home, Liberal Arts,...
        appType.InnerText = String.Format("{0}({1})", wc.strAppType, wc.strAppVersion);     // PROD(V1.0.0) or DEVL(V1.0.0)
        appSub.InnerText = wc.strPoweredBy;                                                 // Powered by ASP.NET 4.x

        lblDate.Text = String.Format("{0:yyyy/MM/dd}", DateTime.UtcNow.AddHours(9));
        lblTime.Text = String.Format("{0:HH:mm:ss}", DateTime.UtcNow.AddHours(9));

        copyRight.InnerHtml = wc.strCopyRight;

        AppLayer.Stats.UpdateViewCount(pv, "Root_Menu_HtmlCss_Article_Article007.aspx");
    }
}

pre {
    max-width: 65em;
    overflow: hidden;
    background-color: #F0F0E8;
    border: none;
    border-left: none;
    border-left-width: 0px;
    display: normal;
    padding: 0px;
}

Go Top

HTML/CSS {Article007}
