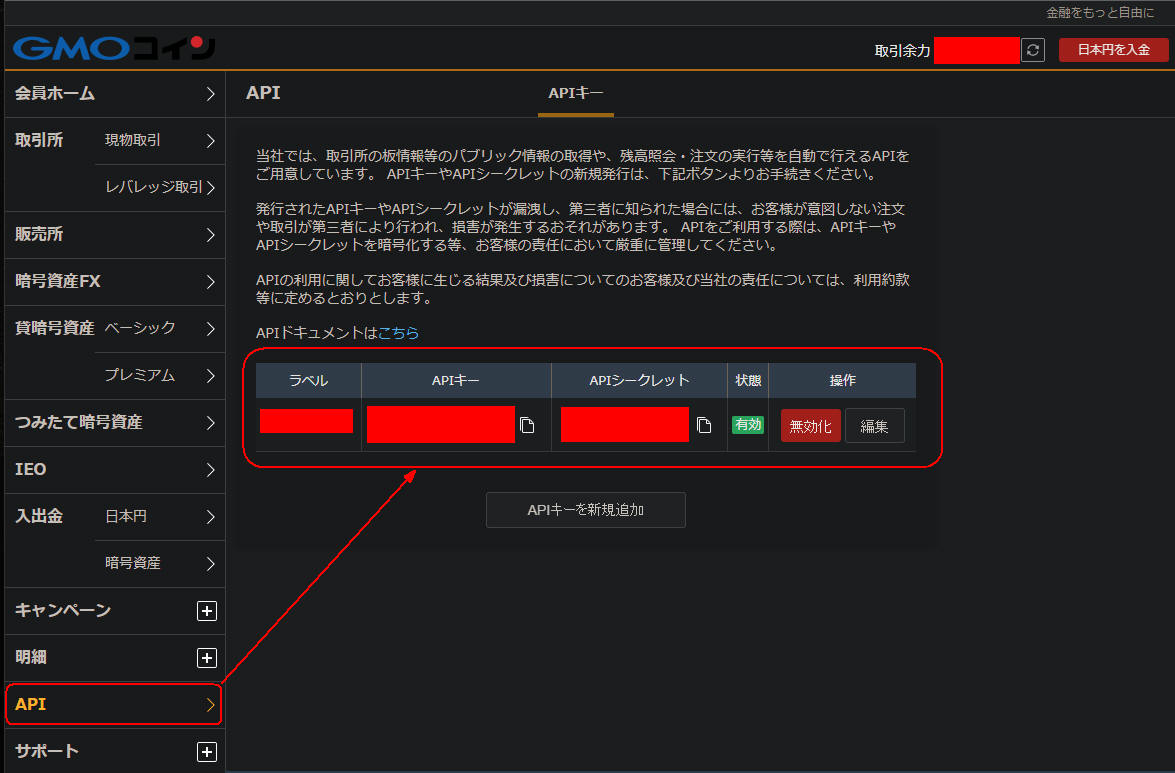

GMOコインに口座を開設してAPIキーを取得する

Apiクラスを作成して__init__(), __str__()メソッドを追加する

# api.py

"""
Api class
status = 0, 4, 5, 8, 9, 999
    0: normal return
    4: invalid request (requests are too many)
    5: maintenance return
    8: retry return
    9: empty dataframe return
    999: misc error return
"""

# import the libraries
import os
import os.path

import time
from time import sleep
import datetime as dt

import numpy as np
import pandas as pd

# api
import hmac
import hashlib

import requests
import json

from lib.base import Bcolors, Gvar, Coin, Gmo_dataframe
from lib.debug import Debug
from lib.trade import Trade

import warnings
warnings.simplefilter('ignore')

########## Api class
class Api:
    """
    __init__(self, gvar, coin)
    load_master_driver() => load_master_data() => call get_crypto_try() => get_crypto()

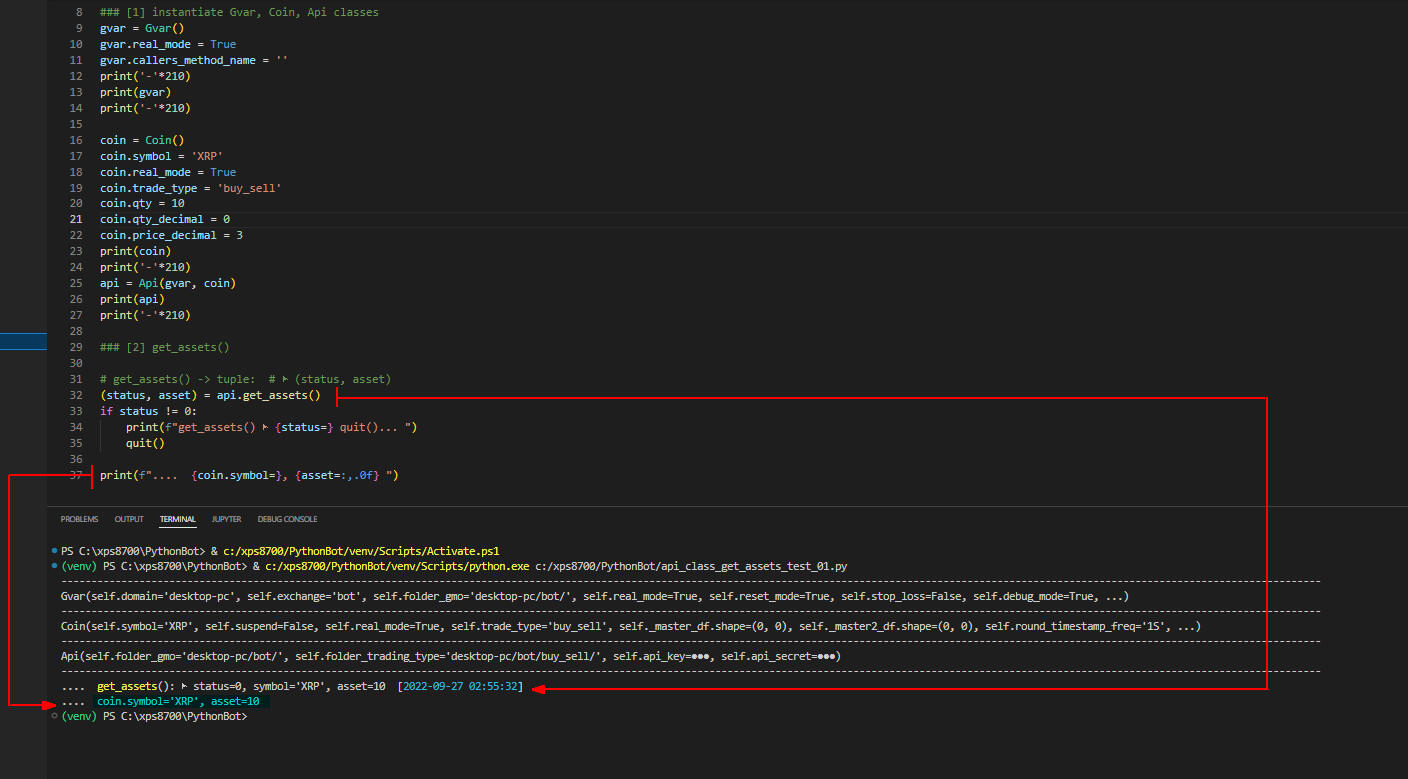

    get_assets() => exe_assets()
    get_crypto_try() => get_crypto()
    get_orderbooks_try() => get_orderbooks()

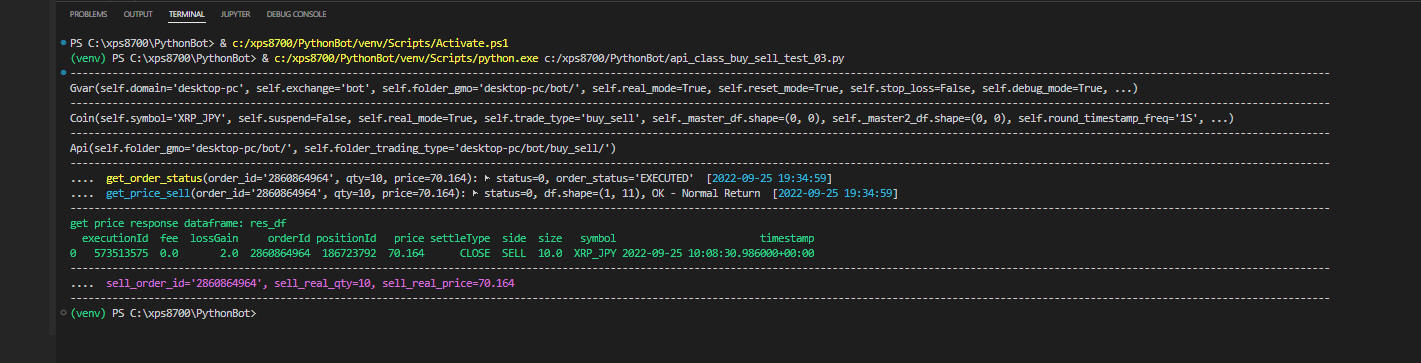

    get_order_status_try() => get_order_status(), get_price_try() => get_price()

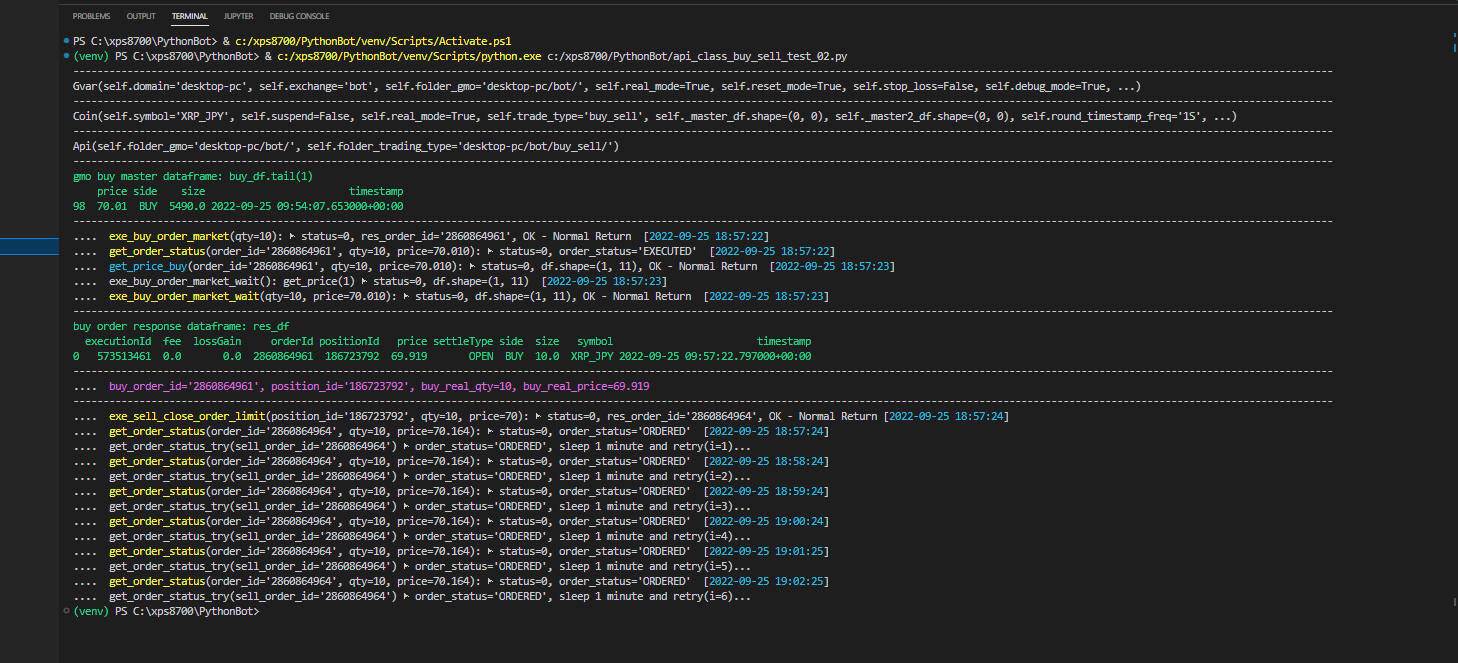

    exe_buy_order_market_wait()  => exe_buy_order_market(),  exe_buy_order_limit()

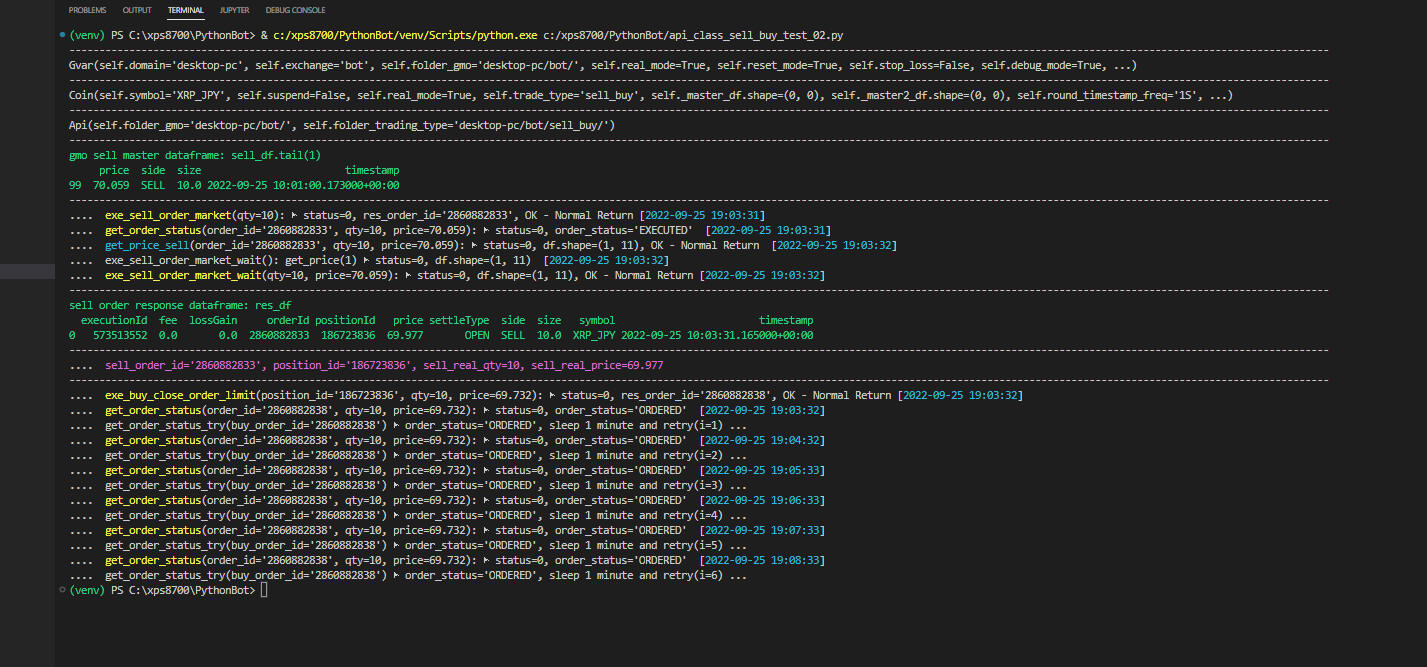

    exe_sell_order_market_wait() => exe_sell_order_market(), exe_sell_order_limit()
    exe_buy_close_order_market_wait()  => exe_buy_close_order_market(),  exe_buy_close_order_limit()
    exe_sell_close_order_market_wait() => exe_sell_close_order_market(), exe_sell_close_order_limit()
    exe_cancel_order()
    """

    #######################################################
    def __init__(self, gvar: object, coin: object) -> None:
        self.gvar = gvar
        self.coin = coin
        self.debug = Debug(gvar)
        self.trade = Trade(gvar, coin)

        self.folder_gmo =  f'{self.gvar.domain}/{self.gvar.exchange}/'  # desktop-pc/bot/
        self.folder_trading_type =  f'{self.gvar.domain}/{self.gvar.exchange}/{self.coin.trade_type}/'
        # desktop-pc/bot/buy_sell/
        # desktop-pc/bot/sell_buy/

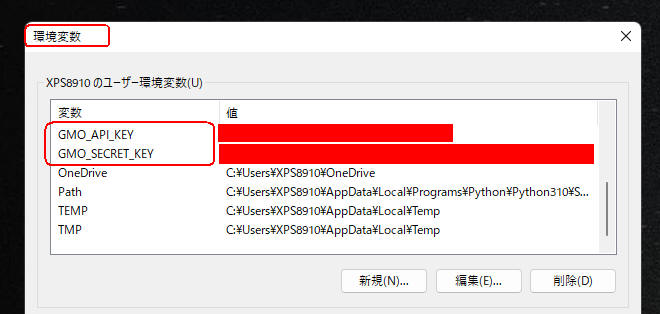

        ### GET GMO API-key / Secret Key
        self.api_key = os.environ.get('GMO_API_KEY')
        self.api_secret = os.environ.get('GMO_SECRET_KEY')

    #########################

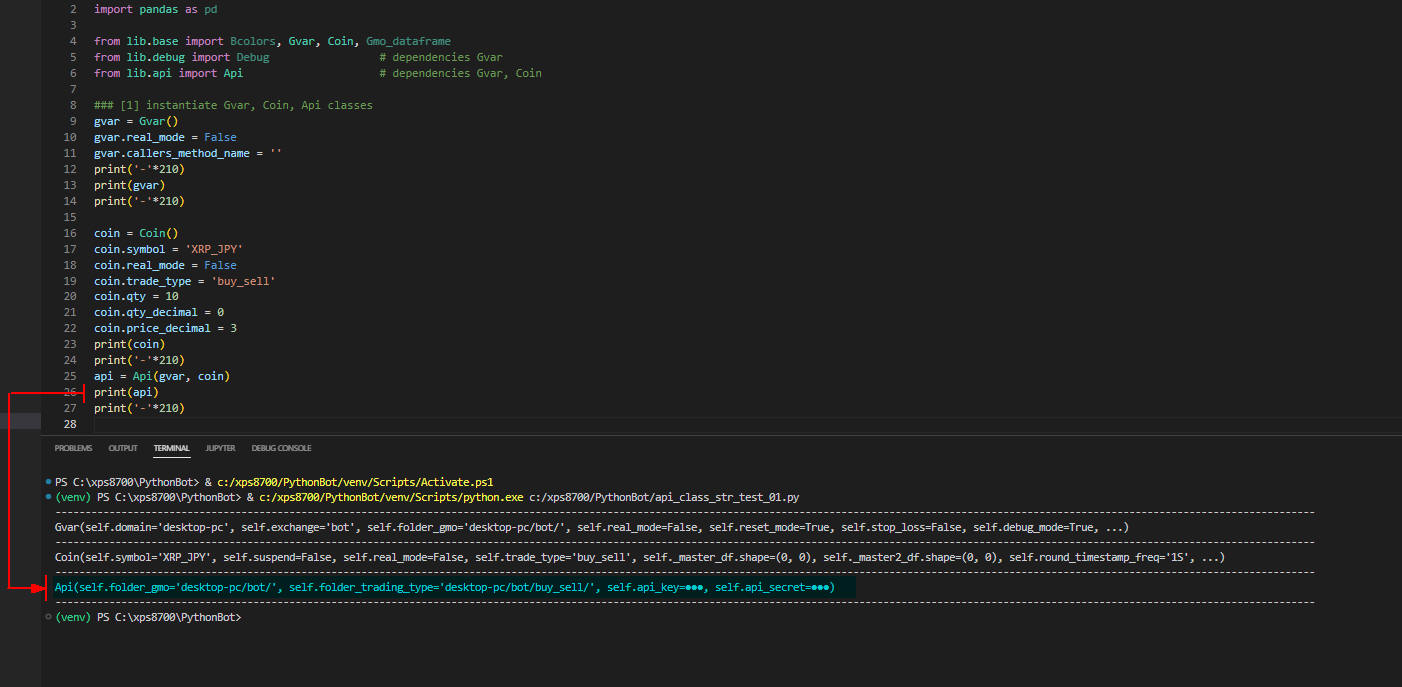

    def __str__(self) -> str:
        return f"Api({self.folder_gmo=}, {self.folder_trading_type=}, self.api_key=●●●, self.api_secret=●●●)"

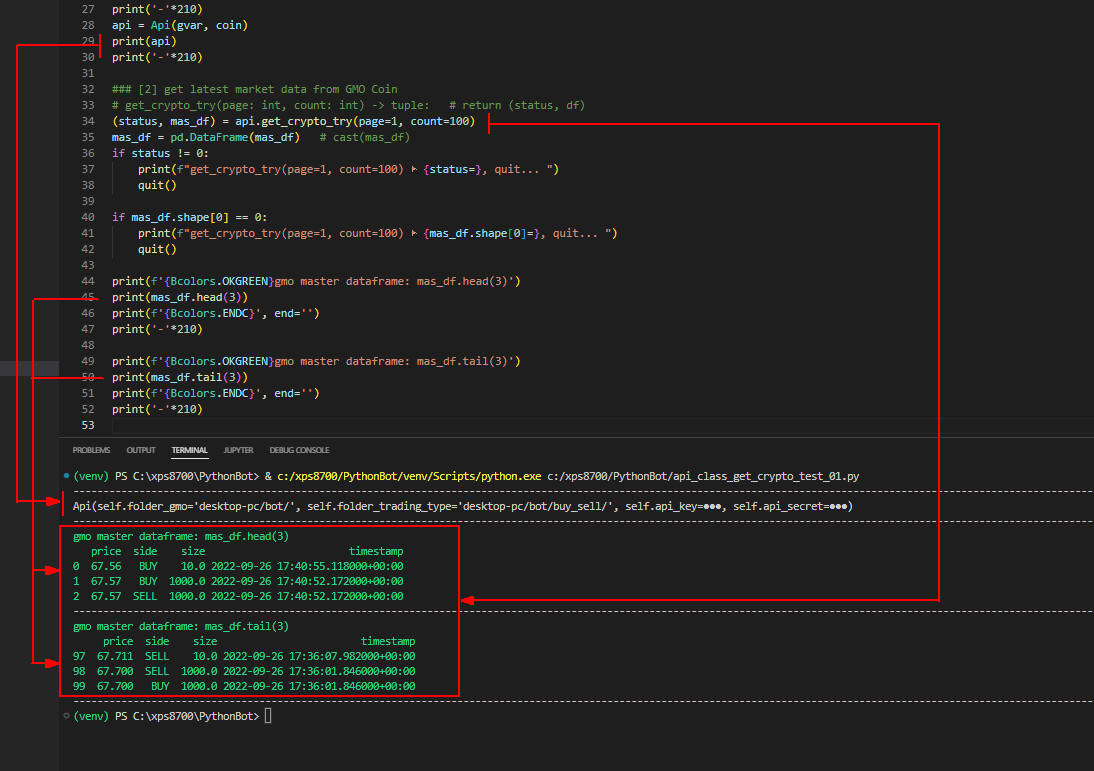

Apiクラスにget_crypto_try(), get_crypto()メソッドを追加する

    #########################################################
    def get_crypto_try(self, page: int, count: int) -> tuple:   # return (status, df)
        retry_count = 0
        # retry N times if invalid or connection error or time out errors
        while True:
            status, df = self.get_crypto(page, count)  # => return (status, df)
            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~60 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_crypto({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)  # sleep 3~60 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, df)

    #####################################################
    def get_crypto(self, page: int, count: int) -> tuple:   # return (status, df)
        symbol = self.coin.symbol
        page_str = str(page)
        count_str = str(count)

        endPoint = 'https://api.coin.z.com/public'
        path = f'/v1/trades?symbol={symbol}&page={page_str}&count={count_str}'
        url = endPoint + path

        status = 999    # misc error return

        while True:

            try:
                res_dict = requests.get(url, timeout=3) # timeout=3 sec

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 8              # retry error
                break   # error return

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 8              # retry error
                break   # error return

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            except:     #  block lets you handle the error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_crypto() ▶ return ...")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try and except block
                pass

            # end of try except else finally

            dict = res_dict.json()

            # invalid url
            # {'message': 'Not Found', 'statusCode': 404}

            statusCode = dict.get('statusCode')

            if statusCode == 404:
                message = dict.get('message')
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}URL NOT FOUND ERROR:{Bcolors.ENDC} get_crypto() ▶  requests.get({url=}) : {statusCode=}, {message=} ")
                self.debug.sound_alert(3)
                quit()

            ### Normal Case

            # {'status': 0, 'data': {'list': [{'price': '4480940', 'side': 'BUY', 'size': '0.0109', 'timestamp': '2022-02-27T08:15:09.241Z'},...

            ################################################### debug info
            # print('-'*100, 'dump response from get_crypto()')
            # print(dict)
            # print('-'*100, 'dump response from get_crypto()')
            ################################################### debug info

            status = dict.get('status')

            # no error ?
            if status == 0:
                data_dict = dict.get('data')
                data_list = data_dict.get('list')
                data_pagination = data_dict.get('pagination')
                df = pd.DataFrame(data_list)
                if df.shape[0] > 0:
                    # convert data types
                    df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (ware) ★  errors='coerce' => NaT or errors='ignore'
                    df = df.astype({'price': 'float', 'size': 'float'})

                break   # normal return
                # ----------------------------------------------------------------
                #  #   Column     Dtype
                # ----------------------------------------------------------------
                #  0   price      float64
                #  1   side       object    'BUY' or 'SELL'
                #  2   size       float64
                #  3   timestamp  datetime64[ns, UTC] ★ UTC descending order
                # ----------------------------------------------------------------

            else:   # error return : status == 5 or 4 or 1 or ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                if status == 5:   # Maintenance
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}) ▶ {status=}, {msg_code} - {msg_str} quit python...")
                    self.debug.sound_alert(3)
                    quit()

                elif status == 4 and msg_code == 'ERR-5003':   # Invalid Request: ERR-5003 Requests are too many
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request():{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}) ▶ {status=}, {msg_code} - {msg_str} wait 1 minute and retry...")
                    df = pd.DataFrame()    # return empty dataframe
                    break   # error return

                else:   # status == ?
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request:{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}): {status=}, {msg_code} - {msg_str} error return with empty dataframe... ")
                    ################################################# debug info
                    print('-'*100, 'dump response from get_crypto()')
                    print(dict)
                    print('-'*100, 'dump response from get_crypto()')
                    ################################################# debug info
                    df = pd.DataFrame()    # return empty dataframe
                    break   # error return

            # end of if status == 0:
        # end of while True:

        #trace_write(f".... get_crpto('{symbol}', page='{page}', count='{count}'): ▶ {df.shape[0]} ")
        return (status, df)

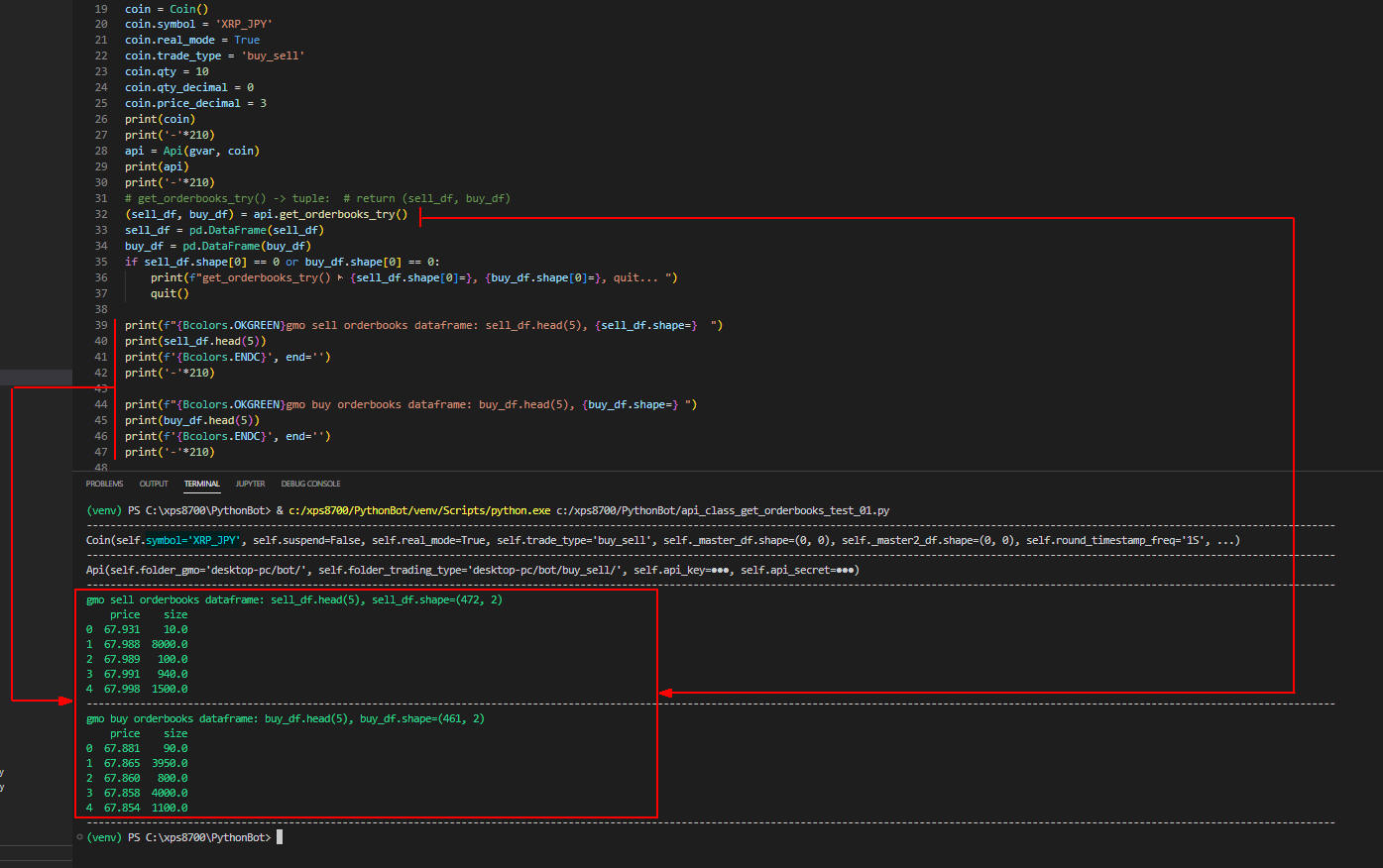

Apiクラスにget_orderbooks_try(), get_orderbooks()メソッドを追加する

    ######################################
    def get_orderbooks_try(self) -> tuple:  # return (sell_df, buy_df)
        retry_count = 0
        # retry N times if invalid or connection or time out errors
        while True:
            status, sell_df, buy_df =  self.get_orderbooks()  # => return (status, sell_df, buy_df)
            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~60 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_orderbooks({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~60 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (sell_df, buy_df)

    ##################################
    def get_orderbooks(self) -> tuple:  # return (status, sell_df, buy_df)
        symbol = self.coin.symbol

        endPoint = 'https://api.coin.z.com/public'
        path = f'/v1/orderbooks?symbol={symbol}'
        url = endPoint + path

        status = 999    # misc error

        while True:
            try:
                res_dict = requests.get(url, timeout=3) # 3 seconds

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                status = 8                  # retry error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                status = 8                  # retry error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except:     #  block lets you handle the error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ return...")
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try and except block
                pass

            # end of try except else finally

            dict = res_dict.json()

            # {'status': 0,
            #  'data': {
            #   'asks': [{'price': '4042000', 'size': '0.0005'},
            #    {'price': '4045000', 'size': '0.0028'},
            #    {'price': '4045018', 'size': '0.0001'},
            #    {'price': '4049000', 'size': '0.001'},
            #    {'price': '4049310', 'size': '0.0329'},
            #    {'price': '4049520', 'size': '0.0125'},
            #    {'price': 5381822.0, 'size': '0.001'}],
            #   'bids': [{'price': 5013050.0, 'size': '0.0749'},
            #    {'price': 5013000.0, 'size': '0.0015'},
            #    {'price': 5012425.0, 'size': '0.05'},
            #    {'price': 5012420.0, 'size': '0.05'},
            #    {'price': 4740000.0, 'size': '0.2135'}],
            #   'symbol': 'BTC'},

            ### Normal Case

            ####################################################### debug info
            # print('-'*100, 'dump response from get_orderbooks()')
            # print(dict)
            # print('-'*100, 'dump response from get_orderbooks()')
            ####################################################### debug info

            status = dict.get('status')

            if status == 0:
                data_dict = dict.get('data')

                asks = data_dict.get('asks') # sell order info (ascending order)
                bids = data_dict.get('bids') # buy order info (descending order)

                sell_df = pd.DataFrame(asks)
                buy_df = pd.DataFrame(bids)

                # {'asks': [{'price': '4064331', 'size': '0.0001'},
                #   {'price': '4069888', 'size': '0.0309'},
                #   {'price': '4070000', 'size': '0.0073'},
                #   {'price': '4070620', 'size': '0.001'},
                #   {'price': 5381822.0, 'size': '0.001'}],

                #  'bids': [{'price': 5013050.0, 'size': '0.0749'},
                #    {'price': 5013000.0, 'size': '0.0015'},
                #    {'price': 5012425.0, 'size': '0.05'},
                #    {'price': 5012420.0, 'size': '0.05'},
                #    {'price': 4740000.0, 'size': '0.2135'}],

                if sell_df.shape[0] > 0:
                    # convert data types
                    sell_df = sell_df.astype({'price': 'float', 'size': 'float'})

                if buy_df.shape[0] > 0:
                    # convert data types
                    buy_df = buy_df.astype({'price': 'float', 'size': 'float'})

            else:   # error return
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                if status == 5:   # Maintenance
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_orderbooks({symbol}) ▶ {status=}, {msg_code} - {msg_str} quit python...")
                    self.debug.sound_alert(3)
                    quit()

                else:   # status == ?
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request:{Bcolors.ENDC} get_orderbooks({symbol}) ▶ {status=}, {msg_code} - {msg_str} error return with empty dataframe... ")
                    ###################################################### debug info
                    print('-'*100, 'dump response from get_orderbooks()')
                    print(dict)
                    print('-'*100, 'dump response from get_orderbooks()')
                    ##################################################### debug info
                    sell_df = pd.DataFrame()    # return empty dataframe
                    buy_df = pd.DataFrame()     # return empty dataframe

            # end if if status == 0:
            break
        # end of while true:

        #trace_write(f".... get_orderbooks('{symbol}'): ▶ {sell_df.shape[0]}, {buy_df.shape[0]} ")
        return (status, sell_df, buy_df)    # status, sell_df(ascending order), buy_df(descending order)

Apiクラスにget_assets(), exe_assets()メソッドを追加する

    ##############################
    def get_assets(self) -> tuple:  # ▶ (status, asset)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        status, df = self.exe_assets()

        # --------------------------------------------------
        #  #   Column          Dtype
        # --------------------------------------------------
        #  0   amount          object
        #  1   available       object
        #  2   conversionRate  object
        #  3   symbol          object
        # --------------------------------------------------

        asset = 0.0

        if status != 0:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_assets{Bcolors.ENDC}(): ▶ {status=} ")
            # error return
            return status, asset

        ############################################ debug info
        # print('-'*100, 'Begin: get_assets()')
        # print('\n', df.head())
        # print('-'*80)
        # print('\n', df.info())
        # print('-'*100, 'End  : getassets()')
        ############################################ debug info

        # -----------------------------------------------------
        #          amount    available  conversionRate symbol
        # -----------------------------------------------------
        # 0  185822.0000  185822.0000             1.0    JPY
        # 1       0.0001       0.0001       4564624.0    BTC
        # 2       0.0000       0.0000        302500.0    ETH
        # 3       0.0100       0.0100         33100.0    BCH
        # 4       0.1000       0.1000         11992.0    LTC
        # ----------------------------------------------------

        filter_mask = df['symbol'] == symbol
        dfx = df[filter_mask]
        if dfx.shape[0] > 0:
            asset = dfx.amount.values[0]

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_assets{Bcolors.ENDC}(): ▶ {status=}, {symbol=}, {asset=:,.{_q_}f} ")
        # normal return
        return status, asset    # 0(int), 1.123(float)

    ############################## execute account/assets ▶ status, df(dataframe)
    def exe_assets(self) -> tuple:   # ▶ status, df(dataframe)
        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'GET'
        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/account/assets'

        url = timestamp + method + path
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.get(endPoint + path, headers=headers, timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}JCOM Maintenance:{Bcolors.ENDC} get_assets() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass
        finally:    # block lets you execute code, regardless of the result of the try and except block
            pass

        dict = res.json()
        status = dict.get('status')

        msg_code = ''
        msg_str = ''

        if status == 0:
            data_list = dict.get('data')
            df = pd.DataFrame(data_list)

            # -----------------------------------------------------------
            #  #   Column          Dtype
            # -----------------------------------------------------------
            #  0   amount          object => float
            #  1   available       object => float
            #  2   conversionRate  object => float
            #  3   symbol          object
            # -----------------------------------------------------------

            # convert data types
            df = df.astype({'amount': 'float', 'available': 'float', 'conversionRate': 'float'})
            # normal return
            return (status, df)

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_assets(): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status=1 or ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # ERR-201
            msg_str = msg_list[0].get('message_string')     # Trading margin is insufficient

            ############################# debug info
            print('-'*100, 'Begin: dump response from exe_assets()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_assets()')
            ############################# debug info

            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_assets{Bcolors.ENDC}(): ▶ {status=}, {msg_code} - {msg_str} ")
            # error return
            return (status, pd.DataFrame())

Apiクラスにexe_buy_order_market_wait(), exe_buy_order_market(), exe_sell_close_order_limit()メソッドを追加する

    ###############################################################################################
    def exe_buy_order_market_wait(self, qty: float, price: float, latest_close_price=0.0) -> tuple:  # return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds)
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage trading)
                                    'lossGain': '0',
                                    'orderId': order_id,            # B9999-999999-999999
                                    'positionId': position_id,      # P9999-999999-999999
                                    'price': latest_close_price,    # ★
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'BUY',                  # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        # exe_buy_order_market(qty: float) -> tuple:    return (status, res_order_id, msg_code, msg_str)
        status, order_id, msg_code, msg_str = self.exe_buy_order_market(qty)    # ★ FAK (Fill and Kill)
        # status: 0(ok), 1(Trading margin is insufficient), ?(misc)

        # error ?
        if status != 0:
            return (status, df, msg_code, msg_str)    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:     # time out ?
                status = 8  # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return =>  (8, df, 'ERR-888', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:   return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR

            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=}  "
                return (status, df, msg_code, msg_str)    # error return

            ### status == 0 : normal return

            # exe_buy_order_market() is pending status
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status_try()

            ### order_status : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED(qty==real_qty), EXPIRED(qty > real_qty), CANCELED(real_qty==0)'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price_try(order_id, qty, price)  # qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # empty dataframe ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return (status, df, msg_code, msg_str)    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # -------------------------------------------------------------
            #  #   Column       Dtype
            # -------------------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC')
            # 10   timestamp    datetime64[ns]
            # ------------------------------------------------------------

            # real_buy_qty = df.iloc[0]['size']
            real_buy_price = df.iloc[0]['price']
            # real_buy_fee = df.iloc[0]['fee']

            if real_buy_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ? => normal return

            sleep(1)    # sleep 1 sec
            # continue to get_price()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
        # normal return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    ####################################################　
    def exe_buy_order_market(self, qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # Buy MMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC} ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test buy order')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'size': qty_str             # Required (1.1234 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass
        finally:    # block lets you execute code, regardless of the result of the try and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''
        msg_code = ''
        msg_str = ''

        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_order_market({qty=:,.{_q_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-201'
            msg_str = msg_list[0].get('message_string')     # 'Trading margin is insufficient'

            if msg_code == 'ERR-201':    # Trading margin is insufficient
                pass
            else:   # misc error
                ################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_buy_order_market()')
                print(dict)
                print('-'*100, 'End  : dump response from exe_buy_order_market()')
                ################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '99999', 'OK', 'Normal Return') or (1, '',  'ERR-201', 'Trading margin is insufficient')

    ##########################################################################################　
    def exe_sell_close_order_limit(self, position_id: str, qty: float, price: float) -> tuple:   # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake/Test sell close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAS (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'settlePosition': [
                {
                    'positionId': position_id,      # 162401271
                    'size': qty_str                 # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_close_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_close_order_limit({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?

            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message...'

            ########################################################################## debug info
            print('-'*100, 'Begin: dump response from exe_sell_close_order_limit()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_sell_close_order_limit()')
            ########################################################################## debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message')

# buy_sell api demo
from time import sleep    # import time
import numpy as np
import pandas as pd

from lib.base import Bcolors, Gvar, Coin, Gmo_dataframe
from lib.debug import Debug                 # dependencies Gvar
from lib.api import Api                     # dependencies Gvar, Coin

### [1] instantiate Gvar, Coin, Api classes
gvar = Gvar()
gvar.real_mode = True           # ★
gvar.callers_method_name = ''
print('-'*210)
print(gvar)
print('-'*210)

coin = Coin()
coin.symbol = 'XRP_JPY'         # ★
coin.real_mode = True           # ★
coin.trade_type = 'buy_sell'    # ★
coin.qty = 10                   # ★
coin.qty_decimal = 0
coin.price_decimal = 3
print(coin)
print('-'*210)

api = Api(gvar, coin)
print(api)
print('-'*210)

### [2] get latest market data from GMO Coin
status, mas_df = api.get_crypto_try(page=1, count=100)
mas_df = pd.DataFrame(mas_df)   # cast(mas_df)
if status != 0:
    print(f"api.get_crypto_try(page=1, count=100) ▶ {status=}, quit... ")
    quit()

if mas_df.shape[0] == 0:
    print(f"api.get_crypto_try(page=1, count=100) ▶ {mas_df.shape[0]=}, quit... ")
    quit()

filter = mas_df['side'] == 'BUY'
buy_mas_df = mas_df[filter]
print(f'{Bcolors.OKGREEN}gmo buy master dataframe: buy_df.tail(1)')
print(buy_mas_df.tail(1))
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

#  buy_mas_df:
# ------------------------------------------------------------------------------------
#  #   Column     Dtype
#  -----------------------------------------------------------------------------------
#  0   price      float64   buy/sell price
#  1   side       object    'BUY' or 'SELL'
#  2   size       float64
#  3   timestamp  datetime64[ns, UTC] ★ UTC descending order
#  -----------------------------------------------------------------------------------

### [3] execute buy order market

buy_qty = coin.qty
last_buy_price = buy_mas_df.iloc[-1]['price']
latest_close_price = last_buy_price

# exe_buy_order_market_wait(qty: float, price: float, latest_close_price=0.0) -> tuple:  # return (status, df, msg_code, msg_str)
(status, res_df, msg_code, msg_str) = api.exe_buy_order_market_wait(buy_qty, last_buy_price, latest_close_price)    # last_buy_price, latest_close_price are used for fake mode only
res_df = pd.DataFrame(res_df)   # cast(df)
if status != 0:
    print(f"exe_buy_order_market_wait({buy_qty=:,.0f}, {last_buy_price=:,.3f}, {latest_close_price=:,.3f}) ▶ {status=}, quit... ")
    quit()

### print buy order [marker] response dataframe

print('-'*210)
print(f'{Bcolors.OKGREEN}buy order response dataframe: res_df')
print(res_df)
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

### print buy order (market) info

buy_order_id = res_df.iloc[0]['orderId']
position_id = res_df.iloc[0]['positionId']
buy_real_price = res_df.iloc[0]['price']
buy_real_qty = res_df.iloc[0]['size']

print(f"....  {Bcolors.HEADER}{buy_order_id=}, {position_id=}, {buy_real_qty=:,.0f}, {buy_real_price=:,.3f}{Bcolors.ENDC} ")
print('-'*210)

### [4] execute sell close order (limit)

sell_position_id = position_id
sell_qty = buy_real_qty
sell_price = buy_real_price * 1.0035    # calculate a sell price

# exe_sell_close_order_limit(position_id: str, qty: float, price: float) -> tuple:   # return (status, res_order_id, msg_code, msg_str)
(status, sell_order_id, msg_code, msg_str) = api.exe_sell_close_order_limit(sell_position_id, sell_qty, sell_price)
if status != 0:
    print(f"exe_sell_close_order_limit({position_id=}, {sell_qty=:,.0f}, {sell_price=:,.3f}) ▶ {status=}, quit... ")
    quit()

### [5] get sell close order status
i = 0
while True:
    i += 1
    # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
    (status, order_status) = api.get_order_status_try(sell_order_id, sell_qty, sell_price)  # sell_qty, sell_price are used for fake mode only
    # status: 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
    # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

    if status != 0:
        print(f"get_order_status_try({sell_order_id=}, {sell_qty=:,.0f}, {sell_price=:,.3f}) ▶ {status=}, quit... ")
        quit()

    if order_status in 'EXECUTED,EXPIRED,CANCELED': break

    # if i > 5: quit()

    print(f"....  get_order_status_try({sell_order_id=}) ▶ {order_status=}, sleep 1 minute and retry({i=})... ")
    sleep(60)    # sleep 1 minute

    # continue to get order status
# end of while True:

if order_status in 'EXPIRED,CANCELED':
    print(f"....  get_order_status_try({sell_order_id=}) ▶ {order_status=}, quit... ")
    quit()

### [6] get a sell price : sell close order has been executed
i = 0
while True:
    i += 1
    ### get_orderbooks_try() -> tuple:  # return (sell_df, buy_df)
    (sell_bk_df, buy_bk_df) = api.get_orderbooks_try()
    sell_bk_df = pd.DataFrame(sell_bk_df)   # 100, 110, 120, 130, 140, 150 (low to high) ascending order of sell price
    buy_bk_df = pd.DataFrame(buy_bk_df)     # 150, 140, 130, 120, 110, 100 (high to low) descending order of buy price

    if sell_bk_df.shape[0] == 0 or buy_bk_df.shape[0] == 0:
        print(f"get_orderbooks_try() ▶ {sell_bk_df.shape[0]=}, {buy_bk_df.shape[0]=}, quit... ")
        quit()

    ### get the latest buy price from orderbooks
    latest_buy_bk_price = buy_bk_df.iloc[0]['price']    # 150

    ### get a sell position number
    filter_mask = sell_bk_df['price'] < sell_price      # < 120
    dfx = sell_bk_df[filter_mask]   # 100, 110
    sell_position = dfx.shape[0]    # 2
    coin.sell_position_list.append(sell_position)   # append sell position [2]
    reverse_sell_position_list = coin.sell_position_list[::-1]

    print(f"....  {reverse_sell_position_list=} ")

    ### get a sell price
    # get_price_try(order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)
    (status, res_df, msg_code, msg_str) = api.get_price_try(sell_order_id, sell_qty, sell_price, latest_buy_bk_price)    # sell_qty, sell_price, latest_buy_bk_price are used for fake mode only
    # status: 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
    # msg_code: OK, ERR-888, ERR-999

    # empty dataframe ?
    if status == 9:
        print(f"....  get_price_try({sell_order_id=}, {sell_qty=:,.0f}, {sell_price=:,.3f}, {latest_buy_bk_price=:,.3f}) ▶ {status=}, sleep 1 minute & retry({i=}) ... ")
        print(f"....  exe_sell_close_order_limit() close condition [{Bcolors.WARNING}{sell_price=:,.3f} <= {latest_buy_bk_price=:,.3f}{Bcolors.ENDC}] ")
        sleep(60)   # sleep 1 minute
        continue

    if status != 0: # 8 or 9 or ?
        print(f"....  get_price_try({sell_order_id=}, {sell_qty=:,.0f}, {sell_price=:,.3f}, {latest_buy_bk_price=:,.3f}) ▶ {status=}, quit... ")
        quit()

    break   # if normal return then exit
# end of while True:

### [7] get a sell price and print it
res_df = pd.DataFrame(res_df)   # cast res_df
print('-'*210)
print(f'{Bcolors.OKGREEN}get price response dataframe: res_df')
print(res_df)
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

sell_order_id = res_df.iloc[0]['orderId']
sell_real_qty = res_df.iloc[0]['size']
sell_real_price = res_df.iloc[0]['price']

print(f"....  {Bcolors.HEADER}{sell_order_id=}, {sell_real_qty=:,.0f}, {sell_real_price=:,.3f}{Bcolors.ENDC} ")
print('-'*210)

Apiクラスにexe_sell_order_market_wait(), exe_sell_order_market(), exe_buy_close_order_limit()メソッドを追加する

    ################################################################################################　
    def exe_sell_order_market_wait(self, qty: float, price: float, latest_close_price=0.0) -> tuple: # return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds) ★
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage traing)
                                    'lossGain': '0',
                                    'orderId': order_id,            # S9999-999999-999999
                                    'positionId': position_id,      # P9999-999999-999999 ★
                                    'price': latest_close_price,    # ★
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'SELL',                 # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        status, order_id, msg_code, msg_str = self.exe_sell_order_market(qty)   # ★ FAK (Fill and Kill)

        # error ?
        if status != 0:
            return status, df, msg_code, msg_str    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:  # time out ?
                status = 8      # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return =>  (8, df, 'ERR-888', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR
            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=} "
                return status, df, msg_code, msg_str    # error return

            ### status == 0

            # exe_sell_order_market() is pending status
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status()

            ### order_staus : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED,EXPIRED,CANCELED'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price_try(order_id, qty, price)  # qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # DataFrame is empty ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # -----------------------------------------------------
            #  #   Column       Dtype
            # -----------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC_JPY')
            # 10   timestamp    datetime64[ns]
            # ----------------------------------------------------

            # real_sell_qty = df.iloc[0]['size']
            real_sell_price = df.iloc[0]['price']
            # real_sell_fee = df.iloc[0]['fee']

            if real_sell_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ?

            sleep(1)        # sleep 1 sec
            # continue to get_order_status_try()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str}")
        # normal or time out error return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    #####################################################　
    def exe_sell_order_market(self, qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC}  ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake\Test sell order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'size': qty_str             # Required (1 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)

        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()

        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()

        status = dict.get('status')     # int type

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_order_market({qty=:,.{_q_}f}): ▶ quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # ERR-208
            msg_str = msg_list[0].get('message_string')     # Exceeds the available balance

            if msg_code == 'ERR-208':   # Exceeds the available balance
                pass
            else:
                ##################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_sell_order_market()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_sell_order_market()')
                ##################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-201', 'Exceeds the available balance')

    ########################################################################################　
    def exe_buy_close_order_limit(self, position_id: str, qty: float, price: float) ->tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'settlePosition': [
                {
                    'positionId': position_id,      # 162401271
                    'size': qty_str                 # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_close_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_close_order_limit({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?

            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message...'

            ######################################################################### debug info
            print('-'*100, 'Begin: dump response from exe_buy_close_order_limit()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_buy_close_order_limit()')
            ######################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message')

# sell_buy api demo
from time import sleep    # import time
import numpy as np
import pandas as pd

from lib.base import Bcolors, Gvar, Coin, Gmo_dataframe
from lib.debug import Debug                 # dependencies Gvar
from lib.api import Api                     # dependencies Gvar, Coin

### [1] instantiate Gvar, Coin, Api classes
gvar = Gvar()
gvar.real_mode = True           # ★
gvar.callers_method_name = ''
print('-'*210)
print(gvar)
print('-'*210)

coin = Coin()
coin.symbol = 'XRP_JPY'         # ★
coin.real_mode = True           # ★
coin.trade_type = 'sell_buy'    # ★
coin.qty = 10                   # ★
coin.qty_decimal = 0
coin.price_decimal = 3
print(coin)
print('-'*210)

api = Api(gvar, coin)
print(api)
print('-'*210)

### [2] get latest market data from GMO Coin
status, mas_df = api.get_crypto_try(page=1, count=100)
mas_df = pd.DataFrame(mas_df)   # cast(mas_df)
if status != 0:
    print(f"api.get_crypto_try(page=1, count=100) ▶ {status=}, quit... ")
    quit()

if mas_df.shape[0] == 0:
    print(f"api.get_crypto_try(page=1, count=100) ▶ {mas_df.shape[0]=}, quit... ")
    quit()

filter = mas_df['side'] == 'SELL'
sell_mas_df = mas_df[filter]
print(f'{Bcolors.OKGREEN}gmo sell master dataframe: sell_df.tail(1)')
print(sell_mas_df.tail(1))
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

#  sell_mas_df:
# ------------------------------------------------------------------------------------
#  #   Column     Dtype
#  -----------------------------------------------------------------------------------
#  0   price      float64   buy/sell price
#  1   side       object    'BUY' or 'SELL'
#  2   size       float64
#  3   timestamp  datetime64[ns, UTC] ★ UTC descending order
#  -----------------------------------------------------------------------------------

### [3] execute sell order (market)

sell_qty = coin.qty
last_sell_price = sell_mas_df.iloc[-1]['price']
latest_close_price = last_sell_price

# exe_sell_order_market_wait(qty: float, price: float, latest_close_price=0.0) -> tuple:  # return (status, df, msg_code, msg_str)
(status, res_df, msg_code, msg_str) = api.exe_sell_order_market_wait(sell_qty, last_sell_price, latest_close_price)    # last_sell_price, latest_close_price are used for fake mode only
res_df = pd.DataFrame(res_df)   # cast(df)
if status != 0:
    print(f"exe_sell_order_market_wait({sell_qty=:,.0f}, {last_sell_price=:,.3f}, {latest_close_price=:,.3f}) ▶ {status=}, quit... ")
    quit()

### print executed sell order response dataframe

print('-'*210)
print(f'{Bcolors.OKGREEN}sell order response dataframe: res_df')
print(res_df)
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

###  print sell order (market) info
sell_order_id = res_df.iloc[0]['orderId']
position_id = res_df.iloc[0]['positionId']
sell_real_price = res_df.iloc[0]['price']
sell_real_qty = res_df.iloc[0]['size']

print(f"....  {Bcolors.HEADER}{sell_order_id=}, {position_id=}, {sell_real_qty=:,.0f}, {sell_real_price=:,.3f}{Bcolors.ENDC} ")
print('-'*210)

### [4] execute buy close order (limit)

buy_position_id = position_id
buy_qty = sell_real_qty
buy_price = sell_real_price -  (sell_real_price * 0.0035)   # calculate buy price

# exe_buy_close_order_limit(position_id: str, qty: float, price: float) -> tuple:   # return (status, res_order_id, msg_code, msg_str)
(status, buy_order_id, msg_code, msg_str) = api.exe_buy_close_order_limit(buy_position_id, buy_qty, buy_price)
if status != 0:
    print(f"exe_buy_close_order_limit({position_id=}, {buy_qty=:,.0f}, {buy_price=:,.3f}) ▶ {status=}, quit... ")
    quit()

### [5] get buy close order status
i = 0
while True:
    i += 1
    # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
    (status, order_status) = api.get_order_status_try(buy_order_id, buy_qty, buy_price)
    # status: 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
    # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

    if status != 0:
        print(f"get_order_status_try({buy_order_id=}, {buy_qty=:,.0f}, {buy_price=:,.3f}) ▶ {status=}, quit... ")
        quit()

    if order_status in 'EXECUTED,EXPIRED,CANCELED': break

    print(f"....  get_order_status_try({buy_order_id=}) ▶ {order_status=}, sleep 1 minute and retry({i=}) ... ")
    sleep(60)    # sleep 1 minute

    # if i > 5: quit()

    # continue to get order status
# end of while True:

if order_status in 'EXPIRED,CANCELED':
    print(f"....  get_order_status_try({buy_order_id=}) ▶ {order_status=}, quit... ")
    quit()

### [6] get a buy price : buy order has been executed
i = 0
while True:
    ### get_orderbooks_try() -> tuple:  # return (sell_df, buy_df)
    (sell_bk_df, buy_bk_df) = api.get_orderbooks_try()
    sell_bk_df = pd.DataFrame(sell_bk_df)   # 100, 110, 120, 130, 140, 150 (low to high) ascending order of sell price
    buy_bk_df = pd.DataFrame(buy_bk_df)     # 150, 140, 130, 120, 110, 100 (high to low) descending order of buy price

    if sell_bk_df.shape[0] == 0 or buy_bk_df.shape[0] == 0:
        print(f"get_orderbooks_try() ▶ {sell_bk_df.shape[0]=}, {buy_bk_df.shape[0]=}, quit... ")
        quit()

    ### get the latest sell price from orderbooks
    latest_sell_bk_price = sell_bk_df.iloc[-1]['price']     # 150

    ### get a buy position number
    buy_bk_df.sort_values('price', ascending=True, inplace=True)    # sort in ascending order of price
    filter_mask = buy_bk_df['price'] > buy_price            # > 120
    dfx = buy_bk_df[filter_mask]   # 130, 140, 150
    buy_position = dfx.shape[0]    # 3
    coin.buy_position_list.append(buy_position)   # append buy position [3]
    reverse_buy_position_list = coin.buy_position_list[::-1]

    print(f"....  {reverse_buy_position_list=} ")

    # get_price_try(order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)
    (status, res_df, msg_code, msg_str) = api.get_price_try(buy_order_id, buy_qty, buy_price, latest_sell_bk_price)
    # status: 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
    # msg_code: OK, ERR-888, ERR-999

    # empty dataframe ?
    if status == 9:
        print(f"....  get_price_try({buy_order_id=}, {buy_qty=:,.0f}, {buy_price=:,.3f}, {latest_sell_bk_price=:,.3f}) ▶ {status=}, sleep 1 minute & retry({i=}) ... ")
        print(f"....  exe_buy_close_order_limit() close condition [{Bcolors.WARNING}{buy_price=:,.3f} >= {latest_sell_bk_price=:,.3f}{Bcolors.ENDC}] ")
        sleep(60)   # sleep 1 minute
        continue


    if status != 0: # 8 or 9 or ?
        print(f"....  get_price_try({buy_order_id=}, {buy_qty=:,.0f}, {buy_price=:,.3f}, {latest_sell_bk_price=:,.3f}) ▶ {status=}, quit... ")
        quit()

    break   # if normal return then exit
# end of while True:

### [7] get a buy price and print it
res_df = pd.DataFrame(res_df)   # cast res_df
print('-'*210)
print(f'{Bcolors.OKGREEN}get price response dataframe: res_df')
print(res_df)
print(f'{Bcolors.ENDC}', end='')
print('-'*210)

buy_order_id = res_df.iloc[0]['orderId']
buy_real_qty = res_df.iloc[0]['size']
buy_real_price = res_df.iloc[0]['price']

print(f"....  {Bcolors.HEADER}{buy_order_id=}, {buy_real_qty=:,.0f}, {buy_real_price=:,.3f}{Bcolors.ENDC} ")
print('-'*210)

Apiクラスにexe_buy_order_limit(), exe_sell_order_limit()メソッドを追加する

    ##################################################################
    def exe_buy_order_limit(self,  qty: float, price: float) -> tuple:       # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test Buy order')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999)
            'size': qty_str             # Required (1.1234 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_order_limit({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            ### {'status': 1, 'messages': [{'message_code': 'ERR-5120', 'message_string': 'Too high price.'}], 'responsetime': '2022-09-26T05:00:58.198Z'}
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')
            msg_str = msg_list[0].get('message_string')

            if msg_code == 'ERR-201':   # Trading margin is insufficient
                pass
            else:
                ################################################################# debug info
                print('-'*100, 'Begin: dump response from exe_buy_order_limit()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_buy_order_limit()')
                ################################################################# debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '99999', 'OK', 'Normal Return') or (1, '', 'ERR-201', 'Trading margin is insufficient')

    ##################################################################
    def exe_sell_order_limit(self, qty: float, price: float) -> tuple:       # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}  ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake/Test sell order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'size': qty_str             # Required (1 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_order_limit({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-208'
            msg_str = msg_list[0].get('message_string')     # 'Exceeds the available balance'

            if msg_code == 'ERR-208':   # Exceeds the available balance
                pass
            else:
                #################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_sell_order_limit()')
                print(dict)
                print('-'*100, 'End  : dump response from exe_sell_order_limit()')
                #################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-5120', 'Too high price')

Apiクラスにget_order_status_try(), get_order_status()メソッドを追加する

    ################################################################################
    def get_order_status_try(self, order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)

        retry_count = 0

        # retry N times if invalid or connection or time out errors
        while True:
            status, order_status = self.get_order_status(order_id, qty, price)   # return (status, order_status)
            # status: 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_order_status({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, order_status)   # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)

    ############################################################################
    def get_order_status(self, order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        if not self.coin.real_mode:
            status = 0
            order_status = 'EXECUTED'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, order_status)
        # end of if not self.coin.real_mode:

        ### real mode

        status = 9  # misc rrror

        while True:
            timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
            method    = 'GET'
            endPoint  = 'https://api.coin.z.com/private'
            path      = '/v1/orders'

            url = timestamp + method + path
            sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()
            parameters = {
                'orderId': order_id # '2478774888' : DO NOT USE multiple orderId  '2478774888','2478774999'  max 10 orderId
            }

            headers = {
                'API-KEY': self.api_key,
                'API-TIMESTAMP': timestamp,
                'API-SIGN': sign
            }

            try:
                res_dict = requests.get(endPoint + path, headers=headers, params=parameters, timeout=3)

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # http error
                break   # error return

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errc}  ")
                status = 8              # retry error
                order_status = 'ERROR'  # connection error
                break   # error return

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                status = 8              # retry error
                order_status = 'ERROR'  # timeout error
                break   # error return

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # exception error
                break   # error return

            except:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ return...")
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # misc exception error
                break   # error return

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try- and except block
                pass

            dict = res_dict.json()
            status = dict.get('status')    # 0 or 1

            # {
            #   "status": 0,
            #   "data": {
            #     "list": [
            #       {
            #         "executedSize": "1000",
            #         "executionType": "MARKET",
            #         "losscutPrice": "0",
            #         "orderId": 2478774888,
            #         "orderType": "NORMAL",
            #         "price": "0",
            #         "rootOrderId": 2478774888,
            #         "settleType": "OPEN",
            #         "side": "BUY",
            #         "size": "1000",
            #         "status": "EXECUTED", # WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED
            #         "symbol": "XRP_JPY",
            #         "timeInForce": "FAK",
            #         "timestamp": "2022-05-13T05:27:46.042Z"
            #       }
            #     ]
            #   },
            #   "responsetime": "2022-05-26T00:23:48.767Z"
            # }

            # normal return
            if status == 0:
                data = dict.get('data')

                if len(data) == 0:
                    df = pd.DataFrame()
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}): ▶ {status=}, {df.shape[0]=} ")
                    order_status = 'EXPIRED'
                    break   # return (status, order_status)

                data_list = data.get('list')

                df = pd.DataFrame(data_list)
                # convert data types
                df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True)   # UTC (aware)

                # 'executedSize': "1000" => float
                # 'losscutPrice': "0" => float
                # 'orderId": 2478774888 => object
                # 'price': "0" => float
                # 'rootOrderId': 2478774888 => object
                # 'size': "1000" => float

                df = df.astype(
                        {
                            'executedSize': 'float', 'losscutPrice': 'float',
                            'orderId': 'object', 'price': 'float',
                            'rootOrderId': 'object', 'size': 'float'
                        }
                    )

                # Data columns (total 14 columns):
                # --------------------------------------------------------------
                #  #   Column         Dtype
                # ---------------------------------------------------------------
                #  0   executedSize   float64
                #  1   executionType  object
                #  2   losscutPrice   float64
                #  3   orderId        object
                #  4   orderType      object
                #  5   price          float64
                #  6   rootOrderId    object
                #  7   settleType     object
                #  8   side           object
                #  9   size           float64
                #  10  status         object
                #  11  symbol         object
                #  12  timeInForce    object
                #  13  timestamp      datetime64[ns, UTC]
                # ------------------------------------------------------------------

                if df.shape[0] == 0:
                    order_status = 'EXPIRED'
                else:
                    order_status = df.loc[0, 'status'] # WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_status=} ")

            elif status == 5:   # Maintenance
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_order_status({order_id=}): ▶ {status=}, quit python...")
                self.debug.sound_alert(3)
                quit()

            else:   # status == ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                ################################################################## debug info
                print('-'*100, 'Begin: dump response from get_order_status()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from get_order_status()')
                ################################################################## debug info

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}): ▶ {status=}, {msg_code} - {msg_str} ")
                order_status = 'ERROR'
            # end of if status == 0:
            break
        # end of while true:

        return (status, order_status)   # 0(ok), 4(invalid request), 8(retry error), 9(misc error)

Apiクラスにget_price_try(), get_price()メソッドを追加する

    #############################################################################################################################
    def get_price_try(self, order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode

        retry_count = 0

        # retry N times if invalid or connection or time out errors
        while True:
            status, df, msg_code, msg_str = self.get_price(order_id, qty, price, latest_book_price, debug1, debug2)   # return (status, order_status)
            # status: 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            # msg_code: OK, ERR-888, ERR-999

            # connection error, time out error ?
            if status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_price({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, df, msg_code, msg_str)  # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)

    #########################################################################################################################
    def get_price(self, order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        if not self.coin.real_mode:
            if latest_book_price == 0.0: latest_book_price = price
            buy_sell = True if self.coin.trade_type == 'buy_sell' else False

            return_empty_df = True

            if buy_sell:
                if debug1 or debug2:
                    return_empty_df = False
                else: # neither debug1 nor debug2
                    # skip empty position list
                    if len(self.coin.sell_position_list) > 0:
                        # first sell position ?
                        if self.coin.sell_position_list[-1] == 0:
                            # sell_price is less than equal to latest buy orderbooks price ?
                            if price <= latest_book_price:
                                return_empty_df = False
            else: # sell_buy
                if debug1 or debug2:
                    return_empty_df = False
                else: # neither debug1 nor debug2
                    # skip empty position list
                    if len(self.coin.buy_position_list) > 0:
                        # first buy position ?
                        if self.coin.buy_position_list[-1] == 0:
                            # buy_price is greater than or equal to latest sell orderbooks price ?
                            if price >= latest_book_price:
                                return_empty_df = False
            # end of if buy_sell:

            if not return_empty_df:
                status = 0
                execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
                position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds) ★
                position_list = [
                                    {
                                        'executionId': execution_id,
                                        'fee': '0',                     # 1 => 0 (leverage trading) ★
                                        'lossGain': '0',
                                        'orderId': order_id,
                                        'positionId': position_id,      # ★
                                        'price': latest_book_price,     # ★
                                        'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                        'side': 'SELL',                 # 'SELL' or 'BUY'
                                        'size': qty,
                                        'symbol': symbol,
                                        'timestamp': dt.datetime.utcnow()
                                    }
                                ]

                df = pd.DataFrame(position_list)
                # convert data types
                df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
                df['executionId'] = df['executionId'].astype(str)   # int64 => string
                df['orderId'] = df['orderId'].astype(str)           # int64 => string
                df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
                df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

                msg_code = 'OK'
                msg_str = 'Normal Return'
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
                return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
            else: # return empty dataframe
                df = pd.DataFrame()
                status = 9                          # empty dataframe
                msg_code = 'ERR-999'                # null => ERR-999
                msg_str = 'DataFrame is empty'      # null => DataFrame is empty
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
                return (status, df, msg_code, msg_str)  # (9, df, 'ERR-999', 'DataFrame is empty')
            # end of if not return_empty_df:
        # end of if not self.coin.real_mode:

        ### real mode

        status = 9    # internal error or misc error

        while True:
            timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
            method    = 'GET'
            endPoint  = 'https://api.coin.z.com/private'
            path      = '/v1/executions'

            url = timestamp + method + path
            sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()
            parameters = {'orderId': order_id}         # buy or sell orderId

            headers = {
                "API-KEY": self.api_key,
                "API-TIMESTAMP": timestamp,
                "API-SIGN": sign
            }

            try:
                res = requests.get(endPoint + path, headers=headers, params=parameters)
                # res = requests.get(endPoint + path, headers=headers, params=parameters, timeout=3)

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'HTTP ERROR'
                break

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 8      # retry error
                msg_code = 'ERR-888'
                msg_str = 'HTTP ERROR'
                break

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 8      # retry error
                msg_code = 'ERR-888'
                msg_str = 'TIMEOUT ERROR'
                break

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'EXCEPTION ERROR'
                break

            except:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_price() ▶ quit python...")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'MISC EXCEPTION ERROR'
                break

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try- and except block
                pass

            dict = res.json()

            # BTC_JPY
            # -----------------------------------------------------
            # {
            #     'status': 0,
            #     'data': {
            #         'list': [
            #             {'executionId': 492454252,
            #             'fee': '0',
            #             'lossGain': '0',
            #             'orderId': 2350188580,
            #             'positionId': 162375068, ★
            #             'price': '92.967',
            #             'settleType': 'OPEN',
            #             'side': 'SELL',
            #             'size': '10',
            #             'symbol': 'XRP_JPY',
            #             'timestamp': '2022-03-17T10:12:33.135Z'
            #             }
            #           ]
            #     },
            #     'responsetime': '2022-03-19T00:06:00.681Z'
            # }
            # -----------------------------------------------------

            status = dict.get('status')

            # nornal return ?
            if status == 0:
                data_dict = dict.get('data')
                if len(data_dict) == 0:
                    df = pd.DataFrame()
                    status = 9                          # empy dataframe
                    msg_code = 'ERR-999'                # null => ERR-999
                    msg_str = 'DataFrame is empty'      # null => DataFrame is empty
                else:
                    data_list = data_dict.get('list')
                    df = pd.DataFrame(data_list)

                    # BTC_JPY
                    # Data columns (total 11 columns):
                    # -----------------------------------------------------------
                    #  #   Column       Dtype
                    # -----------------------------------------------------------
                    #  0   executionId  int64   => string
                    #  1   fee          object  => float
                    #  2   lossGain     object  => float
                    #  3   orderId      int64   => string
                    #  4   positionId   int64   => string
                    #  5   price        object  => float
                    #  6   settleType   object  'OPEN' or 'CLOSE'
                    #  7   side         object  'SELL' or 'BUY'
                    #  8   size         object  => float
                    #  9   symbol       object  => 'BTC_JPY'
                    # 10   timestamp    object  => time(utc)
                    # -----------------------------------------------------------

                    if df.shape[0] > 0:
                        # convert data types
                        df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
                        df['executionId'] = df['executionId'].astype(str)       # int64 => string
                        df['orderId'] = df['orderId'].astype(str)               # int64 => string
                        df['positionId'] = df['positionId'].astype(str)         # int64 => string ★
                        df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

                        # Data columns (total 11 columns):
                        # ---------------------------------------------------------
                        #  #   Column       Dtype
                        # ---------------------------------------------------------
                        #  0   executionId  object
                        #  1   fee          float64
                        #  2   lossGain     float64
                        #  3   orderId      object
                        #  4   positionId   object  ★
                        #  5   price        float64
                        #  6   settleType   object  (OPEN or CLOSE)
                        #  7   side         object  (BUY or SELL)
                        #  8   size         float64
                        #  9   symbol       object  (BTC_JPY)
                        #  10  timestamp    datetime64[ns, UTC]
                        # ---------------------------------------------------------

                    msg_code = 'OK'
                    msg_str = 'Normal Return'                           # 'Normal Return'
                # end of if len(data_dict) == 0:

            elif status == 5:   # Maintenance
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_price({order_id=}) ▶ {status=} quit python...")
                self.debug.sound_alert(3)
                quit()

            else:   # status == ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')  # ERR-???
                msg_str = msg_list[0].get('message_string') # error message

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {msg_code} - {msg_str} ")
                self.debug.sound_alert(3)

                ######################################################## debug info
                print('-'*100, 'Begin: dump response from get_price()')
                print(dict)
                print('-'*100, 'End  : dump response from get_price()')
                ####################################################### debug info

                ### change original error status(?) to empty status(9) ★

                df = pd.DataFrame()
                status = 9                          # empty dataframe
                msg_code = 'ERR-999'                # null => ERR-999
                msg_str = 'DataFrame is empty'      # null => DataFrame is empty

            # end of if status == 0:

            if status == 0:
                side_pos = df.columns.get_loc('side')
                side = df.iloc[0, side_pos] # get side ('BUY' or 'SELL')
                if side == 'BUY':
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.OKCYAN}get_price_buy{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                else:  #  'SELL':
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.OKCYAN}get_price_sell{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
            elif status == 9:   # dataframe is empty
                pass    # do not print message
            else:   # error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
            # end of if status == 0:
            break
        # end of while loop

        # normal or error return
        return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return') or (8, df, 'ERR-888', 'Error Message') or (9, df, 'ERR-999', 'DataFrame is mepty')

Apiクラスにexe_cancel_order()メソッドを追加する

    ###################################################　
    def exe_cancel_order(self, order_id: str) -> tuple:      # return (status, msg_code, msg_str)

        if not self.coin.real_mode:
            status = 0
            msg_code = 'OK'
            msg_str = 'Cancelled...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_cancel_order{Bcolors.ENDC}({order_id=}): {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, msg_code, msg_str)  # (0, 'OK', 'Cancelled...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/cancelOrder'
        reqBody = {'orderId': order_id}

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_cancel_order() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        msg_code = ''
        msg_str = ''

        # normal return
        if status == 0:
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_cancel_order({order_id=}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')  # ERR-5122
            msg_str = msg_list[0].get('message_string') #  The request is invalid due to the status of the specified order.

            if msg_code == 'ERR-5122':  # The request is invalid due to the status of the specified order
                pass
            else:
                ################################################################# debug info
                print('-'*100, 'Begin: dump response from exe_cancel_order()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_cancel_order()')
                ################################################################# debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_cancel_order{Bcolors.ENDC}({order_id=}): ▶ {status=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, msg_code, msg_str)  # (0, 'OK, 'Normal Return') or (1, 'ERR-5122', 'The request is invalid due to the status of the specified order')

Apiクラスの全てを掲載

# api.py

"""
Api class
status = 0, 4, 5, 8, 9, 999
    0: normal return
    4: invalid request (requests are too many)
    5: maintenance return
    8: retry return
    9: empty dataframe return
    999: misc error return
"""

# import the libraries
import os
import os.path

import time
from time import sleep
import datetime as dt

import numpy as np
import pandas as pd

# api
import hmac
import hashlib

import requests
import json

from lib.base import Bcolors, Gvar, Coin, Gmo_dataframe
from lib.debug import Debug
from lib.trade import Trade

import warnings
warnings.simplefilter('ignore')

########## Api class
class Api:
    """
    __init__(self), __init__(self, gvar, coin)
    load_master_driver() => load_master_data() => call get_crypto_try() => get_crypto()
    get_assets() => exe_assets()
    get_crypto_try() => get_crypto()
    get_orderbooks_try() => get_orderbooks()
    get_order_status_try() => get_order_status(), get_price_try() => get_price()
    exe_buy_order_market_wait()  => exe_buy_order_market(),  exe_buy_order_limit()
    exe_sell_order_market_wait() => exe_sell_order_market(), exe_sell_order_limit()
    exe_buy_close_order_market_wait()  => exe_buy_close_order_market(),  exe_buy_close_order_limit()
    exe_sell_close_order_market_wait() => exe_sell_close_order_market(), exe_sell_close_order_limit()
    exe_cancel_order()
    """

    ###########################
    def __init__(self) -> None:
        self.gvar = Gvar()                          # Gvar
        self.coin = Coin()                          # Coin
        self.debug = Debug(self.gvar)               # dependent class
        self.trade = Trade(self.gvar, self.coin)    # dependent class

        self.folder_gmo =  f'{self.gvar.domain}/{self.gvar.exchange}/'  # desktop-pc/bot/
        self.folder_trading_type =  f'{self.gvar.domain}/{self.gvar.exchange}/{self.coin.trade_type}/'
        # desktop-pc/bot/buy_sell/
        # desktop-pc/bot/sell_buy/

        ### GET GMO API-key / Secret Key
        self.api_key = os.environ.get('GMO_API_KEY')
        self.api_secret = os.environ.get('GMO_SECRET_KEY')

    #######################################################
    def __init__(self, gvar: object, coin: object) -> None:
        self.gvar = gvar                # Gvar
        self.coin = coin                # Coin
        self.debug = Debug(gvar)        # dependent class
        self.trade = Trade(gvar, coin)  # dependent class

        self.folder_gmo =  f'{self.gvar.domain}/{self.gvar.exchange}/'  # desktop-pc/bot/
        self.folder_trading_type =  f'{self.gvar.domain}/{self.gvar.exchange}/{self.coin.trade_type}/'
        # desktop-pc/bot/buy_sell/
        # desktop-pc/bot/sell_buy/

        ### GET GMO API-key / Secret Key
        self.api_key = os.environ.get('GMO_API_KEY')
        self.api_secret = os.environ.get('GMO_SECRET_KEY')

    #########################
    def __str__(self) -> str:
        return f"Api({self.folder_gmo=}, {self.folder_trading_type=}, self.api_key=●●●, self.api_secret=●●●)"

    ########################
    def x_get_api_key(self):
        return self.api_key

    ###########################
    def x_get_api_secret(self):
        return self.api_secret

    #########################################################
    def get_crypto_try(self, page: int, count: int) -> tuple:   # return (status, df)
        retry_count = 0
        # retry N times if invalid or connection error or time out errors
        while True:
            status, df = self.get_crypto(page, count)  # => return (status, df)
            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_crypto({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)  # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, df)

    #####################################################
    def get_crypto(self, page: int, count: int) -> tuple:   # return (status, df)
        symbol = self.coin.symbol
        page_str = str(page)
        count_str = str(count)

        endPoint = 'https://api.coin.z.com/public'
        path = f'/v1/trades?symbol={symbol}&page={page_str}&count={count_str}'
        url = endPoint + path

        status = 999    # misc error return

        while True:

            try:
                res_dict = requests.get(url, timeout=3) # timeout=3 sec

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 8              # retry error
                break   # error return

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 8              # retry error
                break   # error return

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_crypto() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            except:     #  block lets you handle the error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_crypto() ▶ return ...")
                self.debug.sound_alert(3)
                df = pd.DataFrame()     # return empty dataframe
                status = 999            # misc error
                break   # error return

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try and except block
                pass

            # end of try except else finally

            dict = res_dict.json()

            # invalid url
            # {'message': 'Not Found', 'statusCode': 404}

            statusCode = dict.get('statusCode')

            if statusCode == 404:
                message = dict.get('message')
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}URL NOT FOUND ERROR:{Bcolors.ENDC} get_crypto() ▶  requests.get({url=}) : {statusCode=}, {message=} ")
                self.debug.sound_alert(3)
                quit()

            ### Normal Case

            # {'status': 0, 'data': {'list': [{'price': '4480940', 'side': 'BUY', 'size': '0.0109', 'timestamp': '2022-02-27T08:15:09.241Z'},...

            ################################################### debug info
            # print('-'*100, 'dump response from get_crypto()')
            # print(dict)
            # print('-'*100, 'dump response from get_crypto()')
            ################################################### debug info

            status = dict.get('status')

            # no error ?
            if status == 0:
                data_dict = dict.get('data')
                data_list = data_dict.get('list')
                data_pagination = data_dict.get('pagination')
                df = pd.DataFrame(data_list)
                if df.shape[0] > 0:
                    # convert data types
                    df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (ware) ★  errors='coerce' => NaT or errors='ignore'
                    df = df.astype({'price': 'float', 'size': 'float'})

                break   # normal return

                #  #   Column     Dtype
                # ----------------------------------------------------------------
                #  0   price      float64
                #  1   side       object    'BUY' or 'SELL'
                #  2   size       float64
                #  3   timestamp  datetime64[ns, UTC] ★ UTC descending order
                # ----------------------------------------------------------------

            else:   # error return : status == 5 or 4 or 1 or ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                if status == 5:   # Maintenance
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}) ▶ {status=}, {msg_code} - {msg_str} quit python...")
                    self.debug.sound_alert(3)
                    quit()

                elif status == 4 and msg_code == 'ERR-5003':   # Invalid Request: ERR-5003 Requests are too many
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request():{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}) ▶ {status=}, {msg_code} - {msg_str} wait 1 minute and retry...")
                    df = pd.DataFrame()    # return empty dataframe
                    break   # error return

                else:   # status == ?
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request:{Bcolors.ENDC} get_crypto({symbol}, {page}, {count}): {status=}, {msg_code} - {msg_str} error return with empty dataframe... ")
                    ################################################# debug info
                    print('-'*100, 'dump response from get_crypto()')
                    print(dict)
                    print('-'*100, 'dump response from get_crypto()')
                    ################################################# debug info
                    df = pd.DataFrame()    # return empty dataframe
                    break   # error return

            # end of if status == 0:
        # end of while True:

        #trace_write(f".... get_crpto('{symbol}', page='{page}', count='{count}'): ▶ {df.shape[0]} ")
        return (status, df)

    ######################################
    def get_orderbooks_try(self) -> tuple:  # return (sell_df, buy_df)
        retry_count = 0
        # retry N times if invalid or connection or time out errors
        while True:
            status, sell_df, buy_df =  self.get_orderbooks()  # => return (status, sell_df, buy_df)
            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_orderbooks({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (sell_df, buy_df)

    ##################################
    def get_orderbooks(self) -> tuple:  # return (status, sell_df, buy_df)
        symbol = self.coin.symbol

        endPoint = 'https://api.coin.z.com/public'
        path = f'/v1/orderbooks?symbol={symbol}'
        url = endPoint + path

        status = 999    # misc error

        while True:
            try:
                res_dict = requests.get(url, timeout=3) # 3 seconds  # timeout=0.001  sec

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                status = 8                  # retry error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                status = 8                  # retry error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            except:     #  block lets you handle the error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_orderbooks() ▶ return...")
                self.debug.sound_alert(3)
                status = 999                # misc error
                sell_df = pd.DataFrame()    # return empty dataframe
                buy_df = pd.DataFrame()     # return empty dataframe
                break   # return with empty dataframe

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try- and except block
                pass

            # end of try except else finally

            dict = res_dict.json()

            # {'status': 0,
            #  'data': {
            #   'asks': [{'price': '4042000', 'size': '0.0005'},
            #    {'price': '4045000', 'size': '0.0028'},
            #    {'price': '4045018', 'size': '0.0001'},
            #    {'price': '4049000', 'size': '0.001'},
            #    {'price': '4049310', 'size': '0.0329'},
            #    {'price': '4049520', 'size': '0.0125'},
            #    {'price': 5381822.0, 'size': '0.001'}],
            #   'bids': [{'price': 5013050.0, 'size': '0.0749'},
            #    {'price': 5013000.0, 'size': '0.0015'},
            #    {'price': 5012425.0, 'size': '0.05'},
            #    {'price': 5012420.0, 'size': '0.05'},
            #    {'price': 4740000.0, 'size': '0.2135'}],
            #   'symbol': 'BTC'},

            ### Normal Case

            ####################################################### debug info
            # print('-'*100, 'dump response from get_orderbooks()')
            # print(dict)
            # print('-'*100, 'dump response from get_orderbooks()')
            ####################################################### debug info

            status = dict.get('status')

            if status == 0:
                data_dict = dict.get('data')

                asks = data_dict.get('asks') # sell order info (ascending order)
                bids = data_dict.get('bids') # buy order info (descending order)

                sell_df = pd.DataFrame(asks)
                buy_df = pd.DataFrame(bids)

                # {'asks': [{'price': '4064331', 'size': '0.0001'},
                #   {'price': '4069888', 'size': '0.0309'},
                #   {'price': '4070000', 'size': '0.0073'},
                #   {'price': '4070620', 'size': '0.001'},
                #   {'price': 5381822.0, 'size': '0.001'}],

                #  'bids': [{'price': 5013050.0, 'size': '0.0749'},
                #    {'price': 5013000.0, 'size': '0.0015'},
                #    {'price': 5012425.0, 'size': '0.05'},
                #    {'price': 5012420.0, 'size': '0.05'},
                #    {'price': 4740000.0, 'size': '0.2135'}],

                if sell_df.shape[0] > 0:
                    # convert data types
                    sell_df = sell_df.astype({'price': 'float', 'size': 'float'})

                if buy_df.shape[0] > 0:
                    # convert data types
                    buy_df = buy_df.astype({'price': 'float', 'size': 'float'})

            else:   # error return
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                if status == 5:   # Maintenance
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_orderbooks({symbol}) ▶ {status=}, {msg_code} - {msg_str} quit python...")
                    self.debug.sound_alert(3)
                    quit()

                else:   # status == ?
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}Invalid Request:{Bcolors.ENDC} get_orderbooks({symbol}) ▶ {status=}, {msg_code} - {msg_str} error return with empty dataframe... ")
                    ###################################################### debug info
                    print('-'*100, 'dump response from get_orderbooks()')
                    print(dict)
                    print('-'*100, 'dump response from get_orderbooks()')
                    ##################################################### debug info
                    sell_df = pd.DataFrame()    # return empty dataframe
                    buy_df = pd.DataFrame()     # return empty dataframe

            # end if if status == 0:
            break
        # end of while true:

        #trace_write(f".... get_orderbooks('{symbol}'): ▶ {sell_df.shape[0]}, {buy_df.shape[0]} ")
        return (status, sell_df, buy_df)    # status, sell_df(ascending order), buy_df(descending order)

    ################################################################################
    def get_order_status_try(self, order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)

        retry_count = 0

        # retry N times if invalid or connection or time out errors
        while True:
            status, order_status = self.get_order_status(order_id, qty, price)   # return (status, order_status)
            # status: 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

            # invalid request (requests are too many), connection error, time out error ?
            if status == 4 or status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_order_status({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, order_status)   # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)

    ############################################################################
    def get_order_status(self, order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        if not self.coin.real_mode:
            status = 0
            order_status = 'EXECUTED'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, order_status)
        # end of if not self.coin.real_mode:

        ### real mode

        status = 9  # misc rrror

        while True:
            timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
            method    = 'GET'
            endPoint  = 'https://api.coin.z.com/private'
            path      = '/v1/orders'

            url = timestamp + method + path
            sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()
            parameters = {
                'orderId': order_id # '2478774888' : DO NOT USE multiple orderId  '2478774888','2478774999'  max 10 orderId
            }

            headers = {
                'API-KEY': self.api_key,
                'API-TIMESTAMP': timestamp,
                'API-SIGN': sign
            }

            try:
                res_dict = requests.get(endPoint + path, headers=headers, params=parameters, timeout=3)

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # http error
                break   # error return

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errc}  ")
                status = 8              # retry error
                order_status = 'ERROR'  # connection error
                break   # error return

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                status = 8              # retry error
                order_status = 'ERROR'  # timeout error
                break   # error return

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # exception error
                break   # error return

            except:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_order_status({symbol},{order_id}) ▶ return...")
                self.debug.sound_alert(3)
                status = 9              # misc error
                order_status = 'ERROR'  # misc exception error
                break   # error return

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try- and except block
                pass

            dict = res_dict.json()
            status = dict.get('status')    # 0 or 1

            # {
            #   "status": 0,
            #   "data": {
            #     "list": [
            #       {
            #         "executedSize": "1000",
            #         "executionType": "MARKET",
            #         "losscutPrice": "0",
            #         "orderId": 2478774888,
            #         "orderType": "NORMAL",
            #         "price": "0",
            #         "rootOrderId": 2478774888,
            #         "settleType": "OPEN",
            #         "side": "BUY",
            #         "size": "1000",
            #         "status": "EXECUTED", # WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED
            #         "symbol": "XRP_JPY",
            #         "timeInForce": "FAK",
            #         "timestamp": "2022-05-13T05:27:46.042Z"
            #       }
            #     ]
            #   },
            #   "responsetime": "2022-05-26T00:23:48.767Z"
            # }

            # normal return
            if status == 0:
                data = dict.get('data')

                if len(data) == 0:
                    df = pd.DataFrame()
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}): ▶ {status=}, {df.shape[0]=} ")
                    order_status = 'EXPIRED'
                    break   # return (status, order_status)

                data_list = data.get('list')

                df = pd.DataFrame(data_list)
                # convert data types
                df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True)   # UTC (aware)

                # 'executedSize': "1000" => float
                # 'losscutPrice': "0" => float
                # 'orderId": 2478774888 => object
                # 'price': "0" => float
                # 'rootOrderId': 2478774888 => object
                # 'size': "1000" => float

                df = df.astype(
                        {
                            'executedSize': 'float', 'losscutPrice': 'float',
                            'orderId': 'object', 'price': 'float',
                            'rootOrderId': 'object', 'size': 'float'
                        }
                    )

                # Data columns (total 14 columns):
                # --------------------------------------------------------------
                #  #   Column         Dtype
                # ---------------------------------------------------------------
                #  0   executedSize   float64
                #  1   executionType  object
                #  2   losscutPrice   float64
                #  3   orderId        object
                #  4   orderType      object
                #  5   price          float64
                #  6   rootOrderId    object
                #  7   settleType     object
                #  8   side           object
                #  9   size           float64
                #  10  status         object
                #  11  symbol         object
                #  12  timeInForce    object
                #  13  timestamp      datetime64[ns, UTC]
                # ------------------------------------------------------------------

                if df.shape[0] == 0:
                    order_status = 'EXPIRED'
                else:
                    order_status = df.loc[0, 'status'] # WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_status=} ")

            elif status == 5:   # Maintenance
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_order_status({order_id=}): ▶ {status=}, quit python...")
                self.debug.sound_alert(3)
                quit()

            else:   # status == ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')
                msg_str = msg_list[0].get('message_string')

                ################################################################## debug info
                print('-'*100, 'Begin: dump response from get_order_status()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from get_order_status()')
                ################################################################## debug info

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_order_status{Bcolors.ENDC}({order_id=}): ▶ {status=}, {msg_code} - {msg_str} ")
                order_status = 'ERROR'
            # end of if status == 0:
            break
        # end of while true:

        return (status, order_status)   # 0(ok), 4(invalid request), 8(retry error), 9(misc error)

    #############################################################################################################################
    def get_price_try(self, order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode

        retry_count = 0

        # retry N times if invalid or connection or time out errors
        while True:
            status, df, msg_code, msg_str = self.get_price(order_id, qty, price, latest_book_price, debug1, debug2)   # return (status, order_status)
            # status: 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            # msg_code: OK, ERR-888, ERR-999

            # connection error, time out error ?
            if status == 8:
                if retry_count < self.coin.api_retry_limit_count:
                    retry_count += 1
                    sec = np.random.randint(low=3, high=61, size=(1))[0]  # get random number between 3~61 seconds
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}due to get_price({status=}) error sleeping {sec} seconds :{Bcolors.ENDC} ▶ {retry_count=} ")
                    sleep(sec)    # sleep 3~61 seconds
                    continue
            break   # exit while loop
        # end of while True:

        return (status, df, msg_code, msg_str)  # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)

    #########################################################################################################################
    def get_price(self, order_id: str, qty: float, price: float, latest_book_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        if not self.coin.real_mode:
            if latest_book_price == 0.0: latest_book_price = price
            buy_sell = True if self.coin.trade_type == 'buy_sell' else False

            return_empty_df = True

            if buy_sell:
                if debug1 or debug2:
                    return_empty_df = False
                else: # neither debug1 nor debug2
                    # skip empty position list
                    if len(self.coin.sell_position_list) > 0:
                        # first sell position ?
                        if self.coin.sell_position_list[-1] == 0:
                            # sell_price is less than equal to latest buy orderbooks price ?
                            if price <= latest_book_price:
                                return_empty_df = False
            else: # sell_buy
                if debug1 or debug2:
                    return_empty_df = False
                else: # neither debug1 nor debug2
                    # skip empty position list
                    if len(self.coin.buy_position_list) > 0:
                        # first buy position ?
                        if self.coin.buy_position_list[-1] == 0:
                            # buy_price is greater than or equal to latest sell orderbooks price ?
                            if price >= latest_book_price:
                                return_empty_df = False
            # end of if buy_sell:

            if not return_empty_df:
                status = 0
                execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
                position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds) ★
                position_list = [
                                    {
                                        'executionId': execution_id,
                                        'fee': '0',                     # 1 => 0 (leverage trading) ★
                                        'lossGain': '0',
                                        'orderId': order_id,
                                        'positionId': position_id,      # ★
                                        'price': latest_book_price,     # ★
                                        'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                        'side': 'SELL',                 # 'SELL' or 'BUY'
                                        'size': qty,
                                        'symbol': symbol,
                                        'timestamp': dt.datetime.utcnow()
                                    }
                                ]

                df = pd.DataFrame(position_list)
                # convert data types
                df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
                df['executionId'] = df['executionId'].astype(str)   # int64 => string
                df['orderId'] = df['orderId'].astype(str)           # int64 => string
                df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
                df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

                msg_code = 'OK'
                msg_str = 'Normal Return'
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
                return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
            else: # return empty dataframe
                df = pd.DataFrame()
                status = 9                          # empty dataframe
                msg_code = 'ERR-999'                # null => ERR-999
                msg_str = 'DataFrame is empty'      # null => DataFrame is empty
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
                return (status, df, msg_code, msg_str)  # (9, df, 'ERR-999', 'DataFrame is empty')
            # end of if not return_empty_df:
        # end of if not self.coin.real_mode:

        ### real mode

        status = 9    # internal error or misc error

        while True:
            timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
            method    = 'GET'
            endPoint  = 'https://api.coin.z.com/private'
            path      = '/v1/executions'

            url = timestamp + method + path
            sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()
            parameters = {'orderId': order_id}         # buy or sell orderId

            headers = {
                "API-KEY": self.api_key,
                "API-TIMESTAMP": timestamp,
                "API-SIGN": sign
            }

            try:
                res = requests.get(endPoint + path, headers=headers, params=parameters)
                # res = requests.get(endPoint + path, headers=headers, params=parameters, timeout=3)

            except requests.exceptions.HTTPError as errh:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}HTTP ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errh} ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'HTTP ERROR'
                break

            except requests.exceptions.ConnectionError as errc:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}CONNECTION ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errc}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 8      # retry error
                msg_code = 'ERR-888'
                msg_str = 'HTTP ERROR'
                break

            except requests.exceptions.Timeout as errt:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}TIMEOUT ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {errt}  ")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 8      # retry error
                msg_code = 'ERR-888'
                msg_str = 'TIMEOUT ERROR'
                break

            except requests.exceptions.RequestException as err:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}EXCEPTION ERROR:{Bcolors.ENDC} get_price() ▶ request.get(): {err}  " )
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'EXCEPTION ERROR'
                break

            except:
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC EXCEPTION ERROR:{Bcolors.ENDC} get_price() ▶ quit python...")
                self.debug.sound_alert(3)
                df = pd.DataFrame()
                status = 9    # misc error
                msg_code = 'ERR-999'
                msg_str = 'MISC EXCEPTION ERROR'
                break

            else:       # block lets you execute code when there is no error
                pass

            finally:    # block lets you execute code, regardless of the result of the try- and except block
                pass

            dict = res.json()

            # BTC_JPY
            # -----------------------------------------------------
            # {
            #     'status': 0,
            #     'data': {
            #         'list': [
            #             {'executionId': 492454252,
            #             'fee': '0',
            #             'lossGain': '0',
            #             'orderId': 2350188580,
            #             'positionId': 162375068, ★
            #             'price': '92.967',
            #             'settleType': 'OPEN',
            #             'side': 'SELL',
            #             'size': '10',
            #             'symbol': 'XRP_JPY',
            #             'timestamp': '2022-03-17T10:12:33.135Z'
            #             }
            #           ]
            #     },
            #     'responsetime': '2022-03-19T00:06:00.681Z'
            # }
            # -----------------------------------------------------

            status = dict.get('status')

            # nornal return ?
            if status == 0:
                data_dict = dict.get('data')
                if len(data_dict) == 0:
                    df = pd.DataFrame()
                    status = 9                          # empy dataframe
                    msg_code = 'ERR-999'                # null => ERR-999
                    msg_str = 'DataFrame is empty'      # null => DataFrame is empty
                else:
                    data_list = data_dict.get('list')
                    df = pd.DataFrame(data_list)

                    # BTC_JPY
                    # Data columns (total 11 columns):
                    # -----------------------------------------------------------
                    #  #   Column       Dtype
                    # -----------------------------------------------------------
                    #  0   executionId  int64   => string
                    #  1   fee          object  => float
                    #  2   lossGain     object  => float
                    #  3   orderId      int64   => string
                    #  4   positionId   int64   => string
                    #  5   price        object  => float
                    #  6   settleType   object  'OPEN' or 'CLOSE'
                    #  7   side         object  'SELL' or 'BUY'
                    #  8   size         object  => float
                    #  9   symbol       object  => 'BTC_JPY'
                    # 10   timestamp    object  => time(utc)
                    # -----------------------------------------------------------

                    if df.shape[0] > 0:
                        # convert data types
                        df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
                        df['executionId'] = df['executionId'].astype(str)       # int64 => string
                        df['orderId'] = df['orderId'].astype(str)               # int64 => string
                        df['positionId'] = df['positionId'].astype(str)         # int64 => string ★
                        df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

                        # Data columns (total 11 columns):
                        # ---------------------------------------------------------
                        #  #   Column       Dtype
                        # ---------------------------------------------------------
                        #  0   executionId  object
                        #  1   fee          float64
                        #  2   lossGain     float64
                        #  3   orderId      object
                        #  4   positionId   object  ★
                        #  5   price        float64
                        #  6   settleType   object  (OPEN or CLOSE)
                        #  7   side         object  (BUY or SELL)
                        #  8   size         float64
                        #  9   symbol       object  (BTC_JPY)
                        #  10  timestamp    datetime64[ns, UTC]
                        # ---------------------------------------------------------

                    msg_code = 'OK'
                    msg_str = 'Normal Return'                           # 'Normal Return'
                # end of if len(data_dict) == 0:

            elif status == 5:   # Maintenance
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} get_price({order_id=}) ▶ {status=} quit python...")
                self.debug.sound_alert(3)
                quit()

            else:   # status == ?
                msg_list = dict.get('messages')
                msg_code = msg_list[0].get('message_code')  # ERR-???
                msg_str = msg_list[0].get('message_string') # error message

                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {msg_code} - {msg_str} ")
                self.debug.sound_alert(3)

                ######################################################## debug info
                print('-'*100, 'Begin: dump response from get_price()')
                print(dict)
                print('-'*100, 'End  : dump response from get_price()')
                ####################################################### debug info

                ### change original error status(?) to empty status(9) ★

                df = pd.DataFrame()
                status = 9                          # empty dataframe
                msg_code = 'ERR-999'                # null => ERR-999
                msg_str = 'DataFrame is empty'      # null => DataFrame is empty

            # end of if status == 0:

            if status == 0:
                side_pos = df.columns.get_loc('side')
                side = df.iloc[0, side_pos] # get side ('BUY' or 'SELL')
                if side == 'BUY':
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.OKCYAN}get_price_buy{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                else:  #  'SELL':
                    self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.OKCYAN}get_price_sell{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
            elif status == 9:   # dataframe is empty
                pass    # do not print message
            else:   # error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_price{Bcolors.ENDC}({order_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
            # end of if status == 0:
            break
        # end of while loop

        # normal or error return
        return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return') or (8, df, 'ERR-888', 'Error Message') or (9, df, 'ERR-999', 'DataFrame is mepty')

    ##############################
    def get_assets(self) -> tuple:  # ▶ (status, asset)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        status, df = self.exe_assets()

        # --------------------------------------------------
        #  #   Column          Dtype
        # --------------------------------------------------
        #  0   amount          object
        #  1   available       object
        #  2   conversionRate  object
        #  3   symbol          object
        # --------------------------------------------------

        asset = 0.0

        if status != 0:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_assets{Bcolors.ENDC}(): ▶ {status=} ")
            # error return
            return status, asset

        ############################################ debug info
        # print('-'*100, 'Begin: get_assets()')
        # print('\n', df.head())
        # print('-'*80)
        # print('\n', df.info())
        # print('-'*100, 'End  : getassets()')
        ############################################ debug info

        # -----------------------------------------------------
        #          amount    available  conversionRate symbol
        # -----------------------------------------------------
        # 0  185822.0000  185822.0000             1.0    JPY
        # 1       0.0001       0.0001       4564624.0    BTC
        # 2       0.0000       0.0000        302500.0    ETH
        # 3       0.0100       0.0100         33100.0    BCH
        # 4       0.1000       0.1000         11992.0    LTC
        # ----------------------------------------------------

        filter_mask = df['symbol'] == symbol
        dfx = df[filter_mask]
        if dfx.shape[0] > 0:
            asset = dfx.amount.values[0]

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}get_assets{Bcolors.ENDC}(): ▶ {status=}, {symbol=}, {asset=:,.{_q_}f} ")
        # normal return
        return status, asset    # 0(int), 1.123(float)

    ############################## execute account/assets ▶ status, df(dataframe)
    def exe_assets(self) -> tuple:   # ▶ status, df(dataframe)
        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'GET'
        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/account/assets'

        url = timestamp + method + path
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.get(endPoint + path, headers=headers, timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}JCOM Maintenance:{Bcolors.ENDC} get_assets() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass
        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        msg_code = ''
        msg_str = ''

        if status == 0:
            data_list = dict.get('data')
            df = pd.DataFrame(data_list)

            # -----------------------------------------------------------
            #  #   Column          Dtype
            # -----------------------------------------------------------
            #  0   amount          object => float
            #  1   available       object => float
            #  2   conversionRate  object => float
            #  3   symbol          object
            # -----------------------------------------------------------

            # convert data types
            df = df.astype({'amount': 'float', 'available': 'float', 'conversionRate': 'float'})
            # normal return
            return (status, df)

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_assets(): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status=1 or ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # ERR-201
            msg_str = msg_list[0].get('message_string')     # Trading margin is insufficient

            # debug info
            print('-'*100, 'Begin: dump response from exe_assets()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_assets()')
            # debug info

            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_assets{Bcolors.ENDC}(): ▶ {status=}, {msg_code} - {msg_str} ")
            # error return
            return (status, pd.DataFrame())

    ###############################################################################################
    def exe_buy_order_market_wait(self, qty: float, price: float, latest_close_price=0.0) -> tuple:  # return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds) ★
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage trading)
                                    'lossGain': '0',
                                    'orderId': order_id,            # B9999-999999-999999 ★
                                    'positionId': position_id,      # P9999-999999-999999 ★
                                    'price': latest_close_price,    # ★
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'BUY',                  # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        # exe_buy_order_market(qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        status, order_id, msg_code, msg_str = self.exe_buy_order_market(qty)    # ★ FAK (Fill and Kill)
        # status: 0(ok), 1(Trading margin is insufficient), ?(misc)

        # error ?
        if status != 0:
            return (status, df, msg_code, msg_str)    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:     # time out ?
                status = 8  # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return =>  (8, df, 'ERR-888', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR

            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=}  "
                return (status, df, msg_code, msg_str)    # error return

            ### status == 0 : normal return

            # exe_buy_order_market() is pending status
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status_try()

            ### order_status : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED(qty==real_qty), EXPIRED(qty > real_qty), CANCELED(real_qty==0)'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price_try(order_id, qty, price)  # ★ qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # empty dataframe ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return (status, df, msg_code, msg_str)    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # -------------------------------------------------------------
            #  #   Column       Dtype
            # -------------------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC')
            # 10   timestamp    datetime64[ns]
            # ------------------------------------------------------------

            # real_buy_qty = df.iloc[0]['size']
            real_buy_price = df.iloc[0]['price']
            # real_buy_fee = df.iloc[0]['fee']

            if real_buy_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ? => normal return

            sleep(1)    # sleep 1 sec
            # continue to get_price()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
        # normal return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    ####################################################　
    def exe_buy_order_market(self, qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # Buy MMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC} ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test buy order')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'size': qty_str             # Required (1.1234 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass
        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_order_market({qty=:,.{_q_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-201'
            msg_str = msg_list[0].get('message_string')     # 'Trading margin is insufficient'

            if msg_code == 'ERR-201':    # Trading margin is insufficient
                pass
            else:   # misc error
                ################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_buy_order_market()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_buy_order_market()')
                ################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '99999', 'OK', 'Normal Return') or (1, '',  'ERR-201', 'Trading margin is insufficient')

    ##################################################################
    def exe_buy_order_limit(self,  qty: float, price: float) -> tuple:       # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test Buy order')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999)
            'size': qty_str             # Required (1.1234 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_order_limit({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            ### {'status': 1, 'messages': [{'message_code': 'ERR-5120', 'message_string': 'Too high price.'}], 'responsetime': '2022-09-26T05:00:58.198Z'}
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')
            msg_str = msg_list[0].get('message_string')

            if msg_code == 'ERR-201':   # Trading margin is insufficient
                pass
            else:
                ################################################################# debug info
                print('-'*100, 'Begin: dump response from exe_buy_order_limit()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_buy_order_limit()')
                ################################################################# debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '99999', 'OK', 'Normal Return') or (1, '', 'ERR-201', 'Trading margin is insufficient')

    ################################################################################################　
    def exe_sell_order_market_wait(self, qty: float, price: float, latest_close_price=0.0) -> tuple: # return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            position_id  = 'P' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # PMMDD-HHMMSS-999999(milliseconds) ★
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage traing)
                                    'lossGain': '0',
                                    'orderId': order_id,            # S9999-999999-999999
                                    'positionId': position_id,      # P9999-999999-999999 ★
                                    'price': latest_close_price,    # ★
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'SELL',                 # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        status, order_id, msg_code, msg_str = self.exe_sell_order_market(qty)   # ★ FAK (Fill and Kill)

        # error ?
        if status != 0:
            return status, df, msg_code, msg_str    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:  # time out ?
                status = 8      # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return =>  (8, df, 'ERR-888', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR
            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=} "
                return status, df, msg_code, msg_str    # error return

            ### status == 0

            # exe_sell_order_market() is pending status
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status()

            ### order_staus : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED,EXPIRED,CANCELED'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price_try(order_id, qty, price)  # qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # DataFrame is empty ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # -----------------------------------------------------
            #  #   Column       Dtype
            # -----------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC_JPY')
            # 10   timestamp    datetime64[ns]
            # ----------------------------------------------------

            # real_sell_qty = df.iloc[0]['size']
            real_sell_price = df.iloc[0]['price']
            # real_sell_fee = df.iloc[0]['fee']

            if real_sell_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ?

            sleep(1)        # sleep 1 sec
            # continue to get_order_status_try()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market_wait{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str}")
        # normal or time out error return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    #####################################################　
    def exe_sell_order_market(self, qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC}  ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake\Test sell order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'size': qty_str             # Required (1 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)

        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()

        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()

        status = dict.get('status')     # int type

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_order_market({qty=:,.{_q_}f}): ▶ quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # ERR-208
            msg_str = msg_list[0].get('message_string')     # Exceeds the available balance

            if msg_code == 'ERR-208':   # Exceeds the available balance
                pass
            else:
                ##################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_sell_order_market()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_sell_order_market()')
                ##################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_market{Bcolors.ENDC}({qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-201', 'Exceeds the available balance')

    ##################################################################
    def exe_sell_order_limit(self, qty: float, price: float) -> tuple:       # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}  ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake/Test sell order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method = 'POST'

        endPoint = 'https://api.coin.z.com/private'
        path = '/v1/order'

        reqBody = {
            'symbol': symbol,           # Required (BTC, ETH, LTC,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'size': qty_str             # Required (1 BTC)
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_order_limit({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-208'
            msg_str = msg_list[0].get('message_string')     # 'Exceeds the available balance'

            if msg_code == 'ERR-208':   # Exceeds the available balance
                pass
            else:
                #################################################################### debug info
                print('-'*100, 'Begin: dump response from exe_sell_order_limit()')
                print(dict)
                print('-'*100, 'End  : dump response from exe_sell_order_limit()')
                #################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_order_limit{Bcolors.ENDC}({qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-5120', 'Too high price')

    #######################################################################################################################　
    def exe_buy_close_order_market_wait(self, position_id: str, qty: float, price: float, latest_close_price=0.0) -> tuple:  # return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage trading)
                                    'lossGain': '0',
                                    'orderId': order_id,            # S9999-999999-999999
                                    'positionId': position_id,      # P9999-999999-999999 ★
                                    'price': latest_close_price,
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'SELL',                 # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=}, {df.shape=}, {msg_code} - {msg_str}) {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC} ")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        # exe_buy_close_order_market(symbol='BTC_JPY', position_id='999999999', qty='1.1234')'
        status, order_id, msg_code, msg_str = self.exe_buy_close_order_market(position_id, qty)   # ★ FAK (Fill and Kill)

        # error ?
        if status != 0:
            return (status, df, msg_code, msg_str)    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:  # time out ?
                status = 8      # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return (status, df, msg_code, msg_str)    # error return =>  (9, df, 'ERR-999', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR
            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=} "
                return (status, df, msg_code, msg_str)    # error return

            ### status == 0

            # exe_buy_close_order_market() is pending status
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_close_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status()

            # order_status : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED,EXPIRED,CANCELED'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price_try(order_id, qty, price)  # qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_buy_close_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # empty dataframe ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # ----------------------------------------------------------
            #  #   Column       Dtype
            # ----------------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC')
            # 10   timestamp    datetime64[ns]
            # ---------------------------------------------------------

            # real_sell_qty = df.iloc[0]['size']
            real_sell_price = df.iloc[0]['price']
            # real_sell_fee = df.iloc[0]['fee']

            if real_sell_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ?

            sleep(1)        # sleep 1 sec
            # continue to get_price()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str}")
        # normal or time out error return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    ###########################################################################　
    def exe_buy_close_order_market(self, position_id: str, qty: float) ->tuple:     # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC}  ")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake\Test close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'settlePosition': [
                {
                'positionId': position_id,   # 162401271
                'size': qty_str              # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_close_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()

        status = dict.get('status')     # int type

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_close_order_market({qty=:,.{_q_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message'

            ############################################################################ debug info
            print('-'*100, 'Begin: dump response from exe_buy_close_order_market()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_buy_close_order_market()')
            ############################################################################ debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message...')

    ########################################################################################　
    def exe_buy_close_order_limit(self, position_id: str, qty: float, price: float) ->tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test buy close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake/Test close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'BUY',              # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'settlePosition': [
                {
                    'positionId': position_id,      # 162401271
                    'size': qty_str                 # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_buy_close_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_buy_close_order_limit({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?

            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message...'

            ######################################################################### debug info
            print('-'*100, 'Begin: dump response from exe_buy_close_order_limit()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_buy_close_order_limit()')
            ######################################################################### debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message')

    ########################################################################################################################　
    def exe_sell_close_order_market_wait(self, position_id: str, qty: float, price: float, latest_close_price=0.0) -> tuple:     #  return (status, df, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            if latest_close_price == 0.0: latest_close_price = price
            status = 0
            execution_id = 'E' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # EMMDD-HHMMSS-999999(milliseconds)
            order_id     = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            position_list = [
                                {
                                    'executionId': execution_id,    # E9999-999999-999999
                                    'fee': '0',                     # 1 => 0 (leverage trading)
                                    'lossGain': '0',
                                    'orderId': order_id,            # S9999-999999-999999
                                    'positionId': position_id,      # P9999-999999-999999 ★
                                    'price': latest_close_price,
                                    'settleType': 'OPEN',           # 'OPEN' or 'CLOSE'
                                    'side': 'SELL',                 # 'SELL' or 'BUY'
                                    'size': qty,
                                    'symbol': symbol,
                                    'timestamp': dt.datetime.utcnow()
                                }
                            ]

            df = pd.DataFrame(position_list)
            # convert data types
            df['timestamp'] = pd.to_datetime(df['timestamp'], utc=True, errors='coerce')   # UTC (aware) ★ add=> errors='coerce' => NaT or errors='ignore'
            df['executionId'] = df['executionId'].astype(str)   # int64 => string
            df['orderId'] = df['orderId'].astype(str)           # int64 => string
            df['positionId'] = df['positionId'].astype(str)     # int64 => string ★
            df = df.astype({'fee': 'float', 'lossGain': 'float', 'price': 'float', 'size': 'float'})

            msg_code = 'OK'
            msg_str = 'Normal Return'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {order_id=}, {df.shape=}, {msg_code} - {msg_str}) {Bcolors.FAIL}FAKE MODE{Bcolors.ENDC} ")
            return (status, df, msg_code, msg_str)  # (0, df, 'OK', 'Normal Return')
        # end of if not self.coin.real_mode:

        ### real mode

        df = pd.DataFrame()

        # exe_sell_close_order_market(symbol='BTC_JPY', position_id='999999999', qty='1.1234')'
        status, order_id, msg_code, msg_str = self.exe_sell_close_order_market(position_id, qty)   # ★ FAK (Fill and Kill)

        # error ?
        if status != 0:
            return (status, df, msg_code, msg_str)    # (1, df, 'msg_code', 'msg_str')

        i = 0

        while True:
            i += 1

            if i > self.coin.api_market_timeout_limit:  # time out ?
                status = 8      # time out
                msg_code = 'ERR-888'
                msg_str = f'get_price() time out error: loop count={i} '
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return (status, df, msg_code, msg_str)    # error return =>  (9, df, 'ERR-999', 'get_price() time out error:...')

            # get_order_status_try(order_id: str, qty: float, price: float) ->tuple:    # return (status, order_status)
            status, order_status = self.get_order_status_try(order_id, qty, price)
            # status: # 0(ok), 4(invalid request), 8(retry error), 9(internal error), ?(misc error)
            # order_status: WAITING, ORDERED, MODIFYING, CANCELLING, CANCELED, EXECUTED, EXPIRED, ERROR
            if status != 0:
                msg_code = 'ERR-999'
                msg_str = f"get_order_status({order_id=}) error ▶ {status=}, {order_status=} "
                return (status, df, msg_code, msg_str)    # error return

            ### status == 0

            # exe_sell_close_order_market() is pending status ?
            if order_status in 'WAITING,MODIFYING,CANCELLING,ORDERED':
                self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_close_order_market_wait(): get_order_status({i}) ▶ {status=}, {order_status=} ")
                sleep(1)        # sleep 1 sec
                continue        # continue get_order_status()

            ### order_status : EXECUTED or EXPIRED or CANCELED

            ### get_order_status() ▶ status==0 & order_status in 'EXECUTED,EXPIRED,CANCELED'
            sleep(1)            # sleep 1 sec

            # get_price_try(order_id: str, qty: float, price: float, latest_close_price=0.0, debug1=False, debug2=False) -> tuple:  # return (status, df, msg_code, msg_str)  qty, price, latest_close_price are used for fake mode
            status, df, msg_code, msg_str = self.get_price(order_id, qty, price)  # qty and price are used for fake mode
            # 0(ok),  8(retry error), 9(empty dataframe or internal error), ?(misc error)
            self.debug.trace_write(f".... {self.gvar.callers_method_name} exe_sell_close_order_market_wait(): get_price({i}) ▶ {status=}, {df.shape=} ")

            # error ?
            if status != 0:
                # empty dataframe ?
                if status == 9:
                    sleep(1)        # sleep 1 sec
                    continue        # continue get_price()

                # misc error
                self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str} ")
                return status, df, msg_code, msg_str    # error return

            if df.shape[0] == 0:
                sleep(1)        # sleep 1 sec
                continue        # continue get_price()

            ### Normal Return

            # -----------------------------------------------------------------
            #  #   Column       Dtype
            # -----------------------------------------------------------------
            #  0   executionId  int64
            #  1   fee          float64
            #  2   lossGain     float64
            #  3   orderId      object(string)
            #  4   positionId   object(string)
            #  5   price        float64
            #  6   settleType   object('OPEN' or 'CLOSE')
            #  7   side         object('BUY' or 'SELL')
            #  8   size         float64
            #  9   symbol       object('BTC')
            # 10   timestamp    datetime64[ns]
            # ----------------------------------------------------------------

            # real_sell_qty = df.iloc[0]['size']
            real_sell_price = df.iloc[0]['price']
            # real_sell_fee = df.iloc[0]['fee']

            if real_sell_price > 0:
                msg_code = 'OK'
                msg_str = 'Normal Return'
                break   # got a real price ?

            sleep(1)        # sleep 1 sec
            # continue to get_price()
        # end of while True:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_market_wait{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}}, {price=:,.{_p_}f}): ▶ {status=}, {df.shape=}, {msg_code} - {msg_str}")
        # normal or time out error return
        return (status, df, msg_code, msg_str)    # (0, df, 'OK', 'Normal Return')

    #############################################################################　
    def exe_sell_close_order_market(self, position_id: str, qty: float) -> tuple:    # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'B' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # BMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_buy_close_order_market{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'B9999-999999-999999', 'OK', 'Fake\Test close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'MARKET',  # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAK',       # FAK (Fill and Kill)
            'settlePosition': [
                {
                'positionId': position_id,   # 162401271
                'size': qty_str              # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_close_order_market() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()

        status = dict.get('status')     # int type

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_close_order_market({qty=:,.{_q_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?

            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message'

            ############################################################################ debug info
            print('-'*100, 'Begin: dump response from exe_sell_close_order_market()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_sell_close_order_market()')
            ############################################################################ debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_market{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message...')

    ##########################################################################################　
    def exe_sell_close_order_limit(self, position_id: str, qty: float, price: float) -> tuple:   # return (status, res_order_id, msg_code, msg_str)
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal
        qty_str = f'{qty:.{_q_}f}'
        price_str = f'{price:.{_p_}f}'

        if not self.coin.real_mode:
            status = 0
            res_order_id = 'S' + dt.datetime.now().strftime('%m%d-%H%M%S-%f')    # SMMDD-HHMMSS-999999(milliseconds)
            msg_code = 'OK'
            msg_str = 'Fake/Test sell close order...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, {res_order_id=} {Bcolors.FAIL}FAKE{Bcolors.ENDC}")
            return (status, res_order_id, msg_code, msg_str)  # (0, 'S9999-999999-999999', 'OK', 'Fake/Test sell close order...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/closeOrder'

        reqBody = {
            'symbol': symbol,           # Required (BTC_JPY, ETH_JPY, LTC_JPY,...)
            'side': 'SELL',             # Required (BUY or SELL)
            'executionType': 'LIMIT',   # Required (MARKET, LIMIT, STOP)
            'timeInForce': 'FAS',       # FAK (Fill and Store)
            'price': price_str,         # Required (9999999 YEN)
            'settlePosition': [
                {
                    'positionId': position_id,      # 162401271
                    'size': qty_str                 # 0.01
                }
            ]
        }

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_sell_close_order_limit() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        res_order_id = ''   # string
        msg_code = ''
        msg_str = ''

        # normal return ?
        if status == 0:
            res_order_id = dict.get('data')  # string type
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_sell_close_order_limit({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_p_}f}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?

            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')      # 'ERR-???'
            msg_str = msg_list[0].get('message_string')     # 'Error Message...'

            ########################################################################## debug info
            print('-'*100, 'Begin: dump response from exe_sell_close_order_limit()')
            print(dict)
            print('-'*100, 'End  : dump response from exe_sell_close_order_limit()')
            ########################################################################## debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_sell_close_order_limit{Bcolors.ENDC}({position_id=}, {qty=:,.{_q_}f}, {price=:,.{_q_}f}): ▶ {status=}, {res_order_id=}, {msg_code} - {msg_str}")
        # normal or error return
        return (status, res_order_id, msg_code, msg_str)  # (0, '999999', 'OK', 'Normal Return') or (1, '', 'ERR-???', 'Error Message')

    ###################################################　
    def exe_cancel_order(self, order_id: str) -> tuple:      # return (status, msg_code, msg_str)

        if not self.coin.real_mode:
            status = 0
            msg_code = 'OK'
            msg_str = 'Cancelled...'
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_cancel_order{Bcolors.ENDC}({order_id=}): {Bcolors.FAIL}FAKE{Bcolors.ENDC} ")
            return (status, msg_code, msg_str)  # (0, 'OK', 'Cancelled...')
        # end of if not self.coin.real_mode:

        ### real mode

        timestamp = '{0}000'.format(int(time.mktime(dt.datetime.now().timetuple())))
        method    = 'POST'
        endPoint  = 'https://api.coin.z.com/private'
        path      = '/v1/cancelOrder'
        reqBody = {'orderId': order_id}

        url = timestamp + method + path + json.dumps(reqBody)
        sign = hmac.new(bytes(self.api_secret.encode('ascii')), bytes(url.encode('ascii')), hashlib.sha256).hexdigest()

        headers = {
            'API-KEY': self.api_key,
            'API-TIMESTAMP': timestamp,
            'API-SIGN': sign
        }

        try:
            res = requests.post(endPoint + path, headers=headers, data=json.dumps(reqBody), timeout=3)
        except:
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}MISC ERROR:{Bcolors.ENDC} exe_cancel_order() ▶ quit python...")
            self.debug.sound_alert(3)
            quit()
        else:       # block lets you execute code when there is no error
            pass

        finally:    # block lets you execute code, regardless of the result of the try- and except block
            pass

        dict = res.json()
        status = dict.get('status')

        msg_code = ''
        msg_str = ''

        # normal return
        if status == 0:
            msg_code = 'OK'
            msg_str = 'Normal Return'

        elif status == 5:   # Maintenance
            self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.FAIL}GMO Maintenance:{Bcolors.ENDC} exe_cancel_order({order_id=}): ▶ {status=}, quit python...")
            self.debug.sound_alert(3)
            quit()

        else:   # status == ?
            msg_list = dict.get('messages')
            msg_code = msg_list[0].get('message_code')  # ERR-5122
            msg_str = msg_list[0].get('message_string') #  The request is invalid due to the status of the specified order.

            if msg_code == 'ERR-5122':  # The request is invalid due to the status of the specified order
                pass
            else:
                ################################################################# debug info
                print('-'*100, 'Begin: dump response from exe_cancel_order()')
                print(dict) # temp temp
                print('-'*100, 'End  : dump response from exe_cancel_order()')
                ################################################################# debug info

        # end of if status == 0:

        self.debug.print_log(f".... {self.gvar.callers_method_name} {Bcolors.WARNING}exe_cancel_order{Bcolors.ENDC}({order_id=}): ▶ {status=}, {msg_code} - {msg_str} ")
        # normal or error return
        return (status, msg_code, msg_str)  # (0, 'OK, 'Normal Return') or (1, 'ERR-5122', 'The request is invalid due to the status of the specified order')

    ################################################################################################
    def load_master_driver(self, symbol_list: list, coin_list: list, page: int, count: int) -> None:
        # self.debug.trace_warn(f".... DEBUG: load_master_driver() ")
        for i, symbol in enumerate(symbol_list):    # 'BTC_JPY',   'ETH_JPY',  'BCH_JPY',  'LTC_JPY',  'XRP_JPY'
            coin = coin_list[i] # Coin(coin_list[i])
            if not coin.suspend:
                if self.gvar.reset_mode or coin.master_csv_not_found:
                    # load_master_data(pages: int, count: int, trace=True) -> pd.DataFrame:
                    api = Api(self.gvar, coin)
                    master_df = api.load_master_data(page, count, trace=True)  # (1, 10) ★ sorted by ascending order of timestamp
                    coin.master_df = master_df  # coin.set_master_df(master_df)

                    # cache master df to a csv file
                    # csv_file = self.folder_trading_type + f'master({symbol}).csv'
                    csv_file = api.folder_trading_type + f'master({symbol}).csv'
                    # decktop-pc/bot/buy_sell/master(BTC_JPY).csv
                    # decktop-pc/bot/sell_buy/master(BTC_JPY).csv
                    master_df.to_csv(csv_file, index=False)     # overwrite

        # end of for i, symbol in enumerate(symbol_list):

        return

    ###############################################################################　
    def load_master_data(self, pages: int, count: int, trace=True) -> pd.DataFrame:     # return merge_df
        symbol = self.coin.symbol; _q_ = self.coin.qty_decimal; _p_ = self.coin.price_decimal

        # self.debug.trace_warn(f".... DEBUG: load_master_data() {trace=} ")

        # load the master data from the GMO
        if trace:
            self.debug.print_log(f".... {self.coin.fake_or_real}({symbol}) {self.coin.trade_type}: load_master_data({pages=}, {count=}): loading {symbol} master data from the GMO ")
            # .... fake buy_sell: or fake sell_buy: or real buy_sell: or real sell_buy:

        df_list = []
        for page in range(1, pages+1):   # (1, 11)
            # get_crypto_try(page: int, count: int) -> tuple:   # return (status, df)
            status, df = self.get_crypto_try(page, count)       # (1, 10)
            sleep(2.5)   # sleep 0.5 sec => 1 sec => 2 sec => 2.5 sec
            if status == 0: df_list.append(df)
        # end of for page in range(1, pages+1):   # (1, 11)

        if len(df_list) > 0:
            merge_df = pd.concat(df_list, axis=0) # price, side, size, timestamp(UTC) descending order
        else:
            merge_df = pd.DataFrame()

        # merge_df: gmo master dataframe
        # --------------------------------------------------------------------------------
        #  #   Column     Dtype
        # --------------------------------------------------------------------------------
        #  0   price      float64
        #  1   side       object    'BUY' or 'SELL'
        #  2   size       float64
        #  3   timestamp  datetime64[ns, UTC] ★ UTC descending order
        # --------------------------------------------------------------------------------

        ### sort by timestamp(in ascending order)
        if merge_df.shape[0] > 0:
            merge_df.sort_values('timestamp', ascending=True, inplace=True)

        return merge_df
